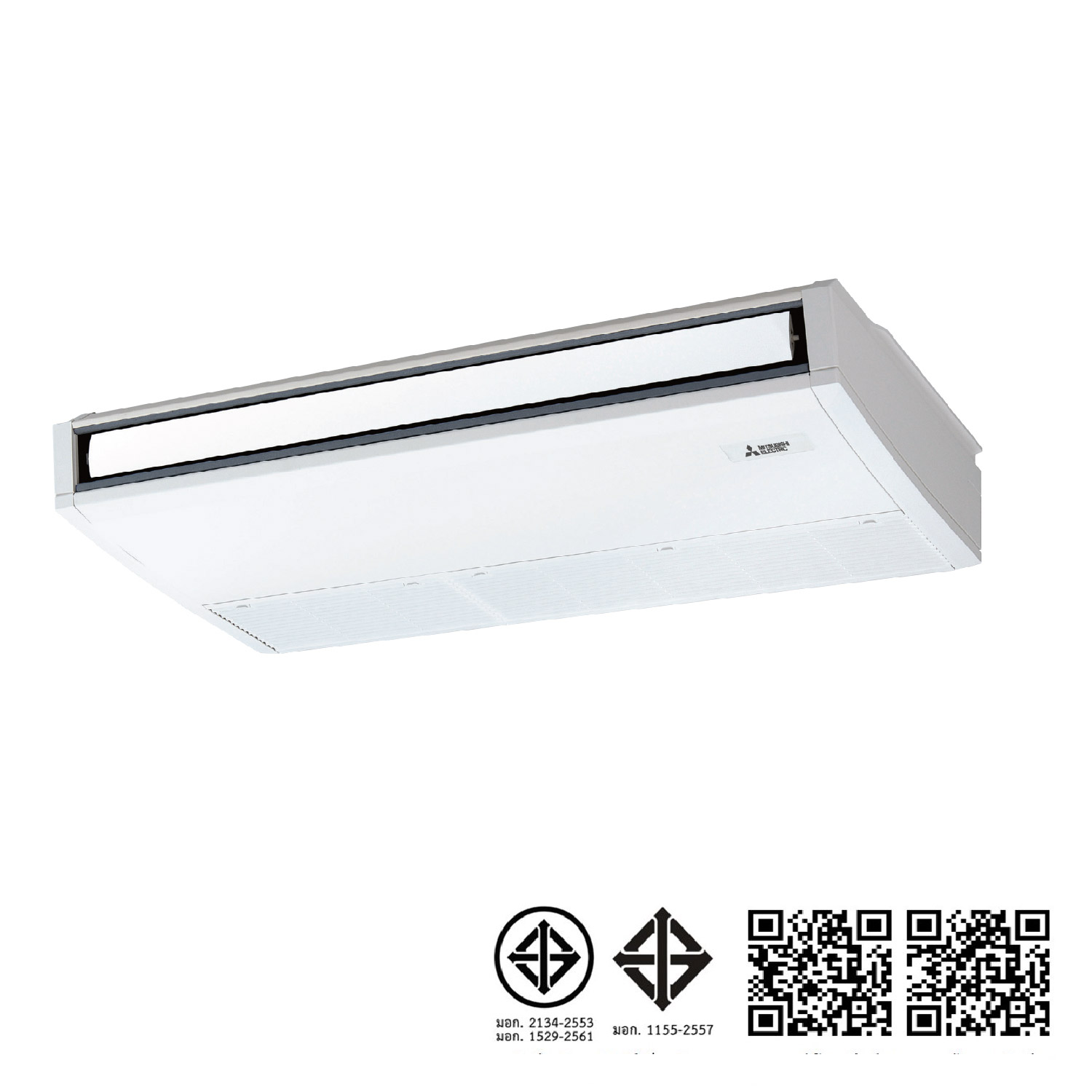

PCY SERIES (PCY-SM42KAL2)
PCY SERIES
PCY-SM42KAL2
(Single phase)
รุ่นแขวนใต้ฝ้าเพดาน , ขนาด 42,000 BTU ,  ระบบ Inverter  , ฉลากประหยัดไฟเบอร์ 5 (2ดาว) , น้ำยา R32
สี : สีขาว
print
MODEL
PCY-SM42KAL2
Cooling capacity (BTU/h)
42,000
SEER (Btu/h/W)
20.92
EGAT level 5
ระดับ 4 ดาว
Cooling : Capacity Rated (kW)
12.3(6.1-12.3)
Heating : Capacity Rated (kW)
Power Supply
1ph, 220V, 50Hz
Microprocessor Control
Automatic Temperature Control
Timer Switch

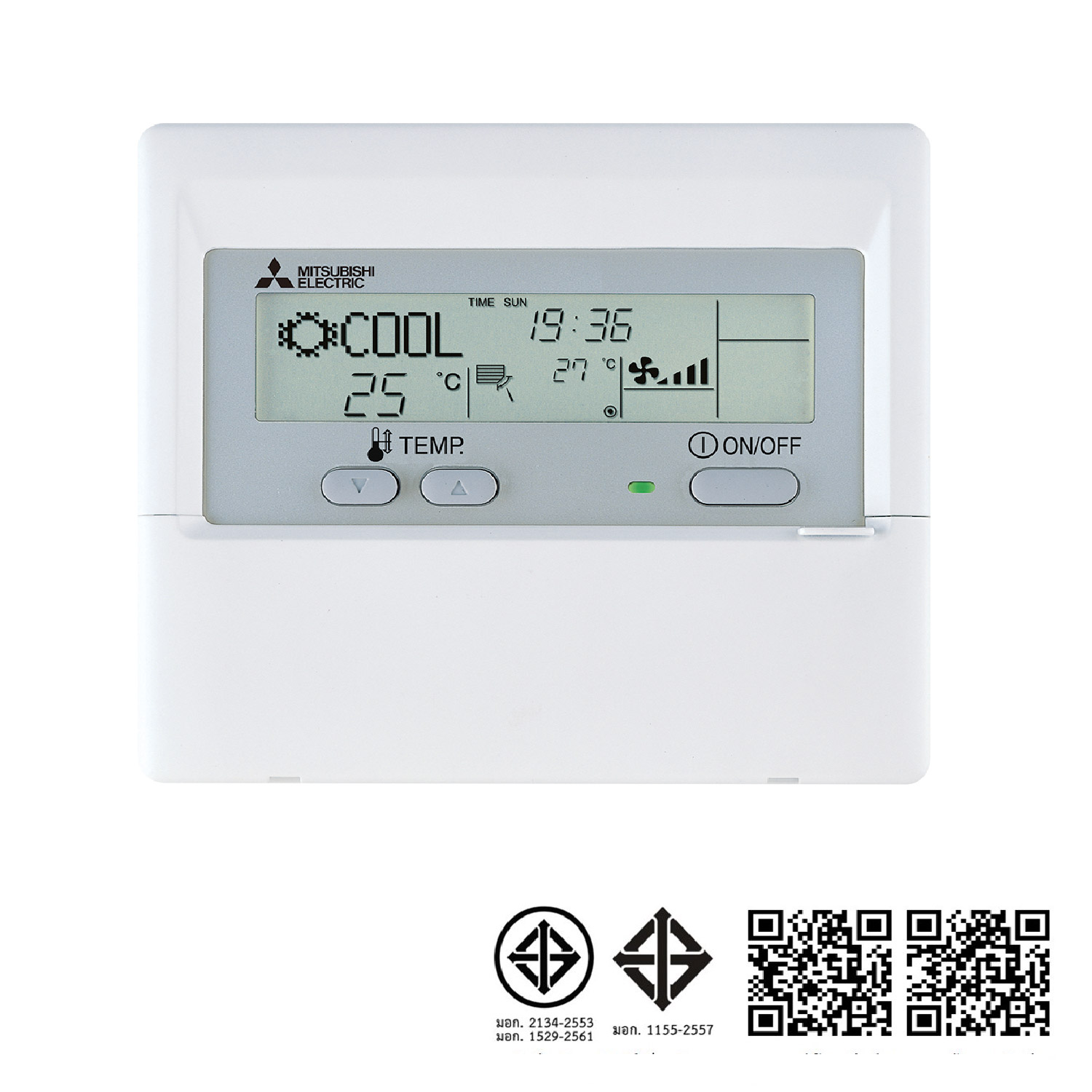

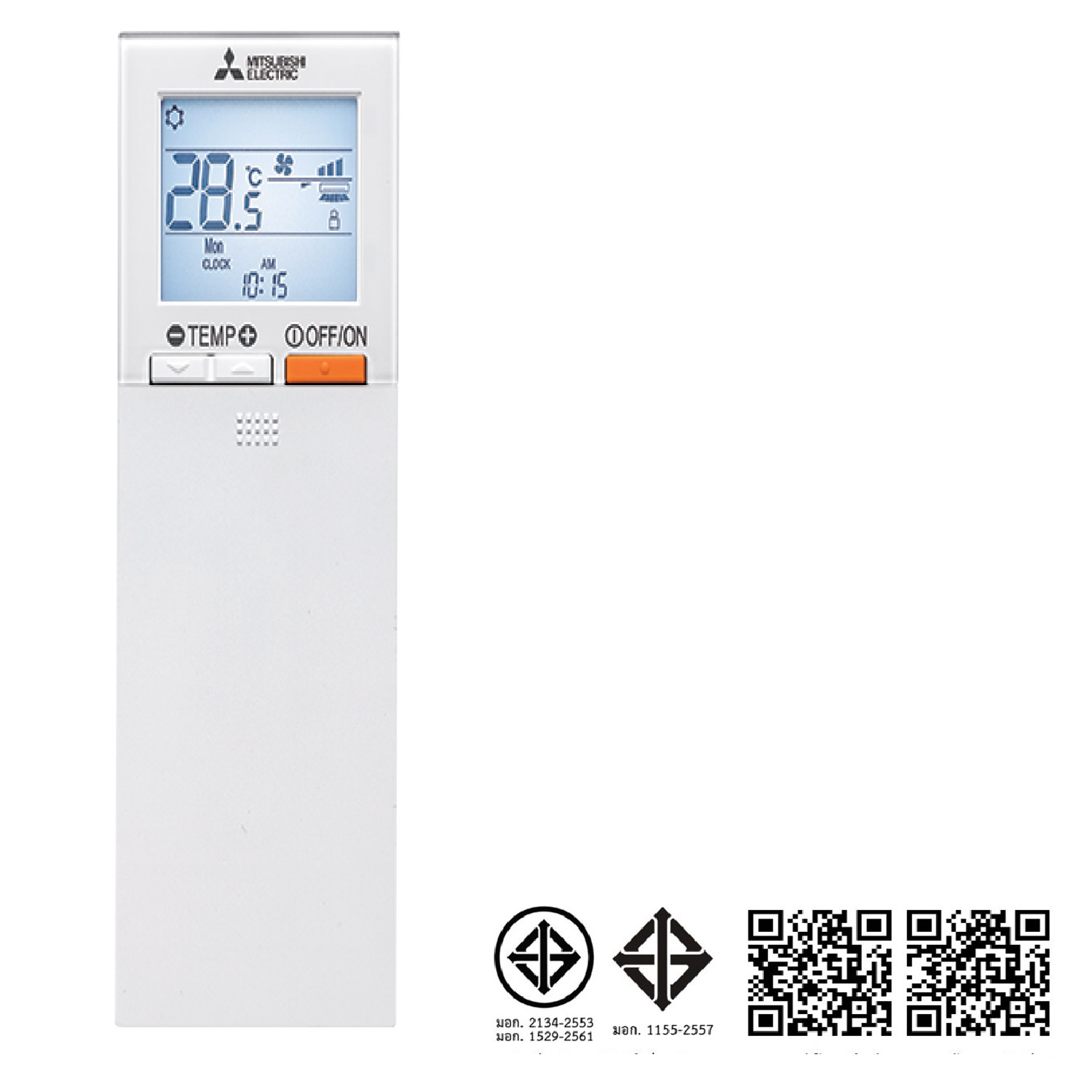

Remote Control Switch
Wireless/Wired(Option)
Indoor Fan Speeds
4 Step+1 AUTO
Blow Fan Indoor
Blow Fan Outdoor
Dimensions Indoor (H x W x D)
230 x 1,600 x 680 (mm.)
Dimensions Outdoor (H x W x D)
981 x 1,050 x 330 (mm.)
Weight Indoor
40
Weight Outdoor
62
Piping Size : Liquid (mm.in)
9.52(3/8)
Piping Size : Gas (mm.in)
15.88(5/8)
Piping Size : Max.Length / Max.Height (m)
50/30
Refrigerant
R32
Warranty
รับประกันแผงคอล์ยร้อน-คอล์ยเย็น 1 ปี/คอมเพรสเซอร์ 5 ปี/อะไหล่ภายในตัวเครื่อง 1 ปี
