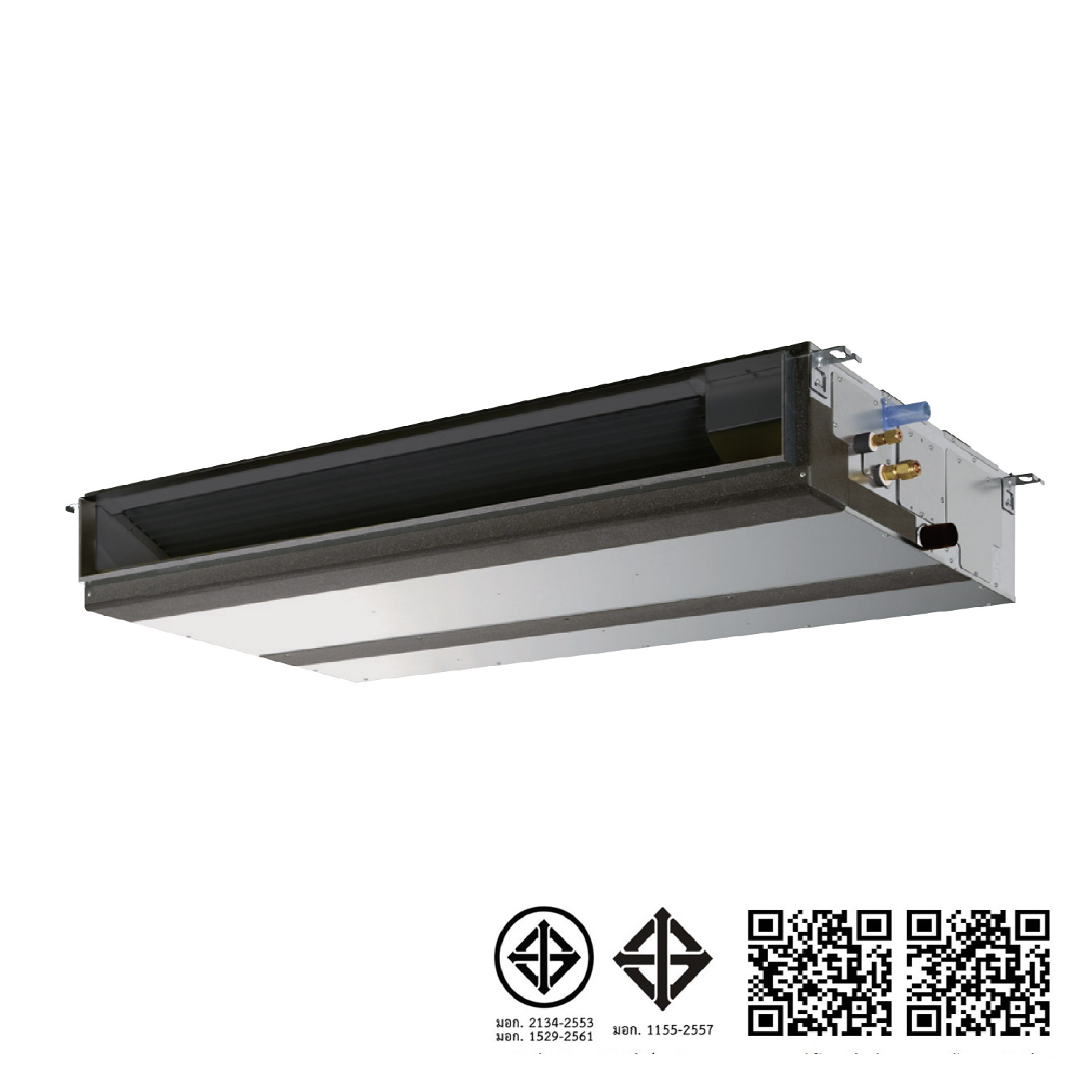

PE SERIES (PE-M18JAKL)
PE SERIES
PE-M18JAK(L)

Download Catalog

Download
2D CAD
print
MODEL
PE-M18JAK(L)
Cooling capacity (BTU/h)
28,300
SEER (Btu/h/W)
12.21
EGAT level 5
0
Cooling : Capacity Rated (kW)
8.3
Heating : Capacity Rated (kW)
Power Supply
1 ph, 220V, 50Hz
Microprocessor Control
Automatic Temperature Control
Timer Switch

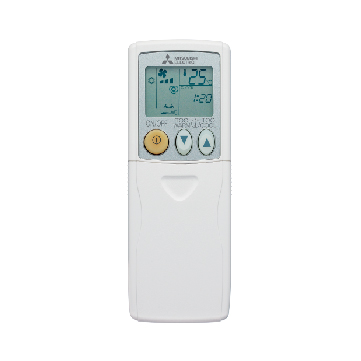

Remote Control Switch
Wireless/Wired
Indoor Fan Speeds
2
Blow Fan Indoor
Blow Fan Outdoor
Dimensions Indoor (H x W x D)
250 x 1,100 x 732 (mm.)
Dimensions Outdoor (H x W x D)
525 x 718 x 255 (mm.)
Weight Indoor
29
Weight Outdoor
34
Piping Size : Liquid (mm.in)
6.35 (1/4)
Piping Size : Gas (mm.in)
12.70 (1/2)
Piping Size : Max.Length / Max.Height (m)
35/20
Refrigerant
R32
Warranty
3 Years IN/OUT door heat exchanger , 5 Years Compressor , 1 Year General Part.
