PE SERIES (PE-M36JAK(L))
PE SERIES
PE-M36JAK(L) ( 3 phase)

Download Catalog
print
MODEL
PE-P36JAK(L) (3ph, 380V, 50Hz)
Cooling capacity (BTU/h)
35,485
SEER (Btu/h/W)
11.26
EGAT level 5
0
Cooling : Capacity Rated (kW)
10.4
Heating : Capacity Rated (kW)
Power Supply
3ph, 380V, 50Hz
Microprocessor Control
Automatic Temperature Control
Timer Switch

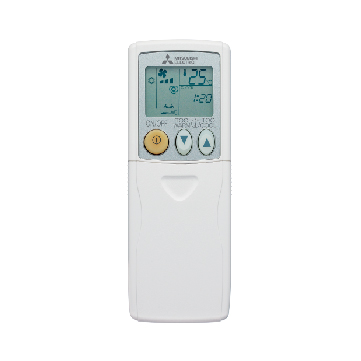

Remote Control Switch
Wireless/Wired
Indoor Fan Speeds
2
Blow Fan Indoor
Blow Fan Outdoor
Dimensions Indoor (H x W x D)
250 x 1,400 x 732 (mm.)
Dimensions Outdoor (H x W x D)
981 x 1050 x 330 (mm.)
Weight Indoor
38
Weight Outdoor
82
Piping Size : Liquid (mm.in)
9.52
Piping Size : Gas (mm.in)
15.88
Piping Size : Max.Length / Max.Height (m)
50/30
Refrigerant
R32
Warranty
3 Years IN/OUT door heat exchanger , 5 Years Compressor , 1 Year General Part.
