PEY SERIES (PEY-M36JA(L))
PEY SERIES

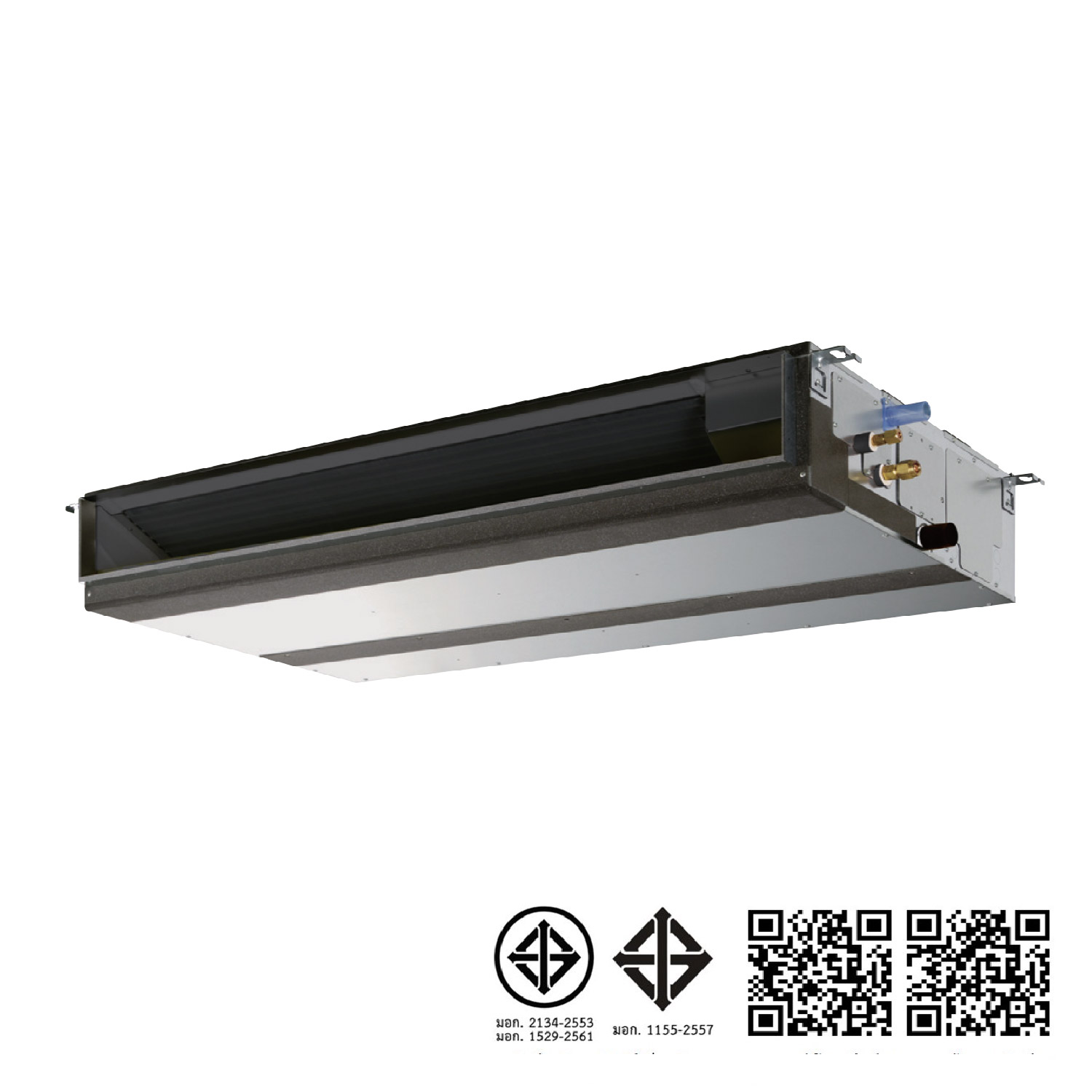

PEY-M36JA(L)

Ceilingconcealed, 36,000 BTU, DUCT pipe, Inverter Series, R32 Refrigerant, Egat

สี : Black
print

- Compact body with a height of only 25 cm.

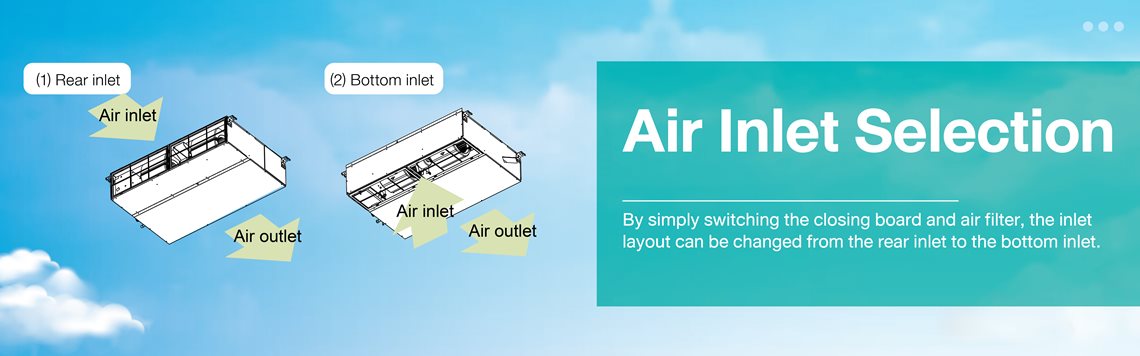

- Airflow can be adjusted from both the rear compartment and the bottom compartment.
- Work quietly By designing a fan and a vent which reduces friction.

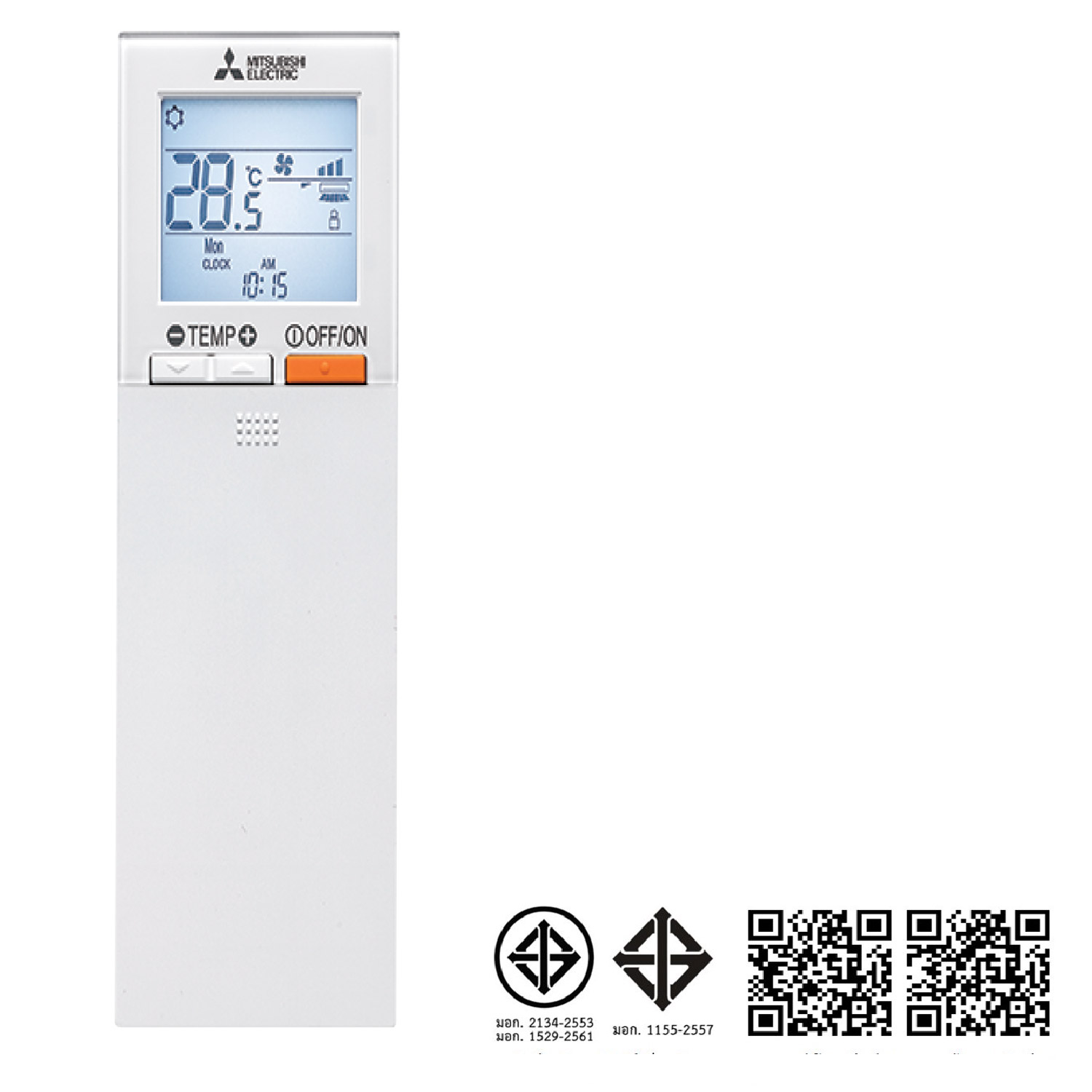

- Controlled by wireless or wired remote control.
- Can pipe solution Up to 30 - 50 meters.

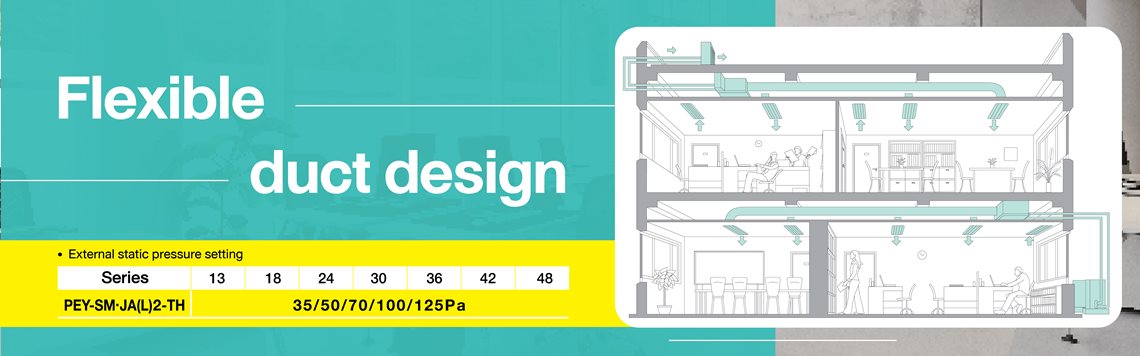

- Adjustable external resistance up to 5 levels.
- Certified for fiber-saving label 5
- Use R32, which is not toxic to the environment.
- INVERTER SYSTEM
MODEL
PEY-M36JA(L)
Cooling capacity (BTU/h)
36,167
SEER (Btu/h/W)
15
EGAT level 5
Cooling : Capacity Rated (kW)
10.6 (4.0 - 10.6)
Heating : Capacity Rated (kW)
-
Power Supply
Single Phase, 220V, 50Hz
Microprocessor Control
Automatic Temperature Control
Timer Switch
Remote Control Switch
Wireless/Wired
Indoor Fan Speeds
Blow Fan Indoor
Blow Fan Outdoor
Dimensions Indoor (H x W x D)
250 x 1,400 x 732
Dimensions Outdoor (H x W x D)
880 x 840 x 330
Weight Indoor
39
Weight Outdoor
50
Piping Size : Liquid (mm.in)
9.52 (3/8)
Piping Size : Gas (mm.in)
15.88 (5/8)
Piping Size : Max.Length / Max.Height (m)
30/15
Refrigerant
R32
