PEY SERIES (PEY-SM48JA(L)3)
PEY SERIES

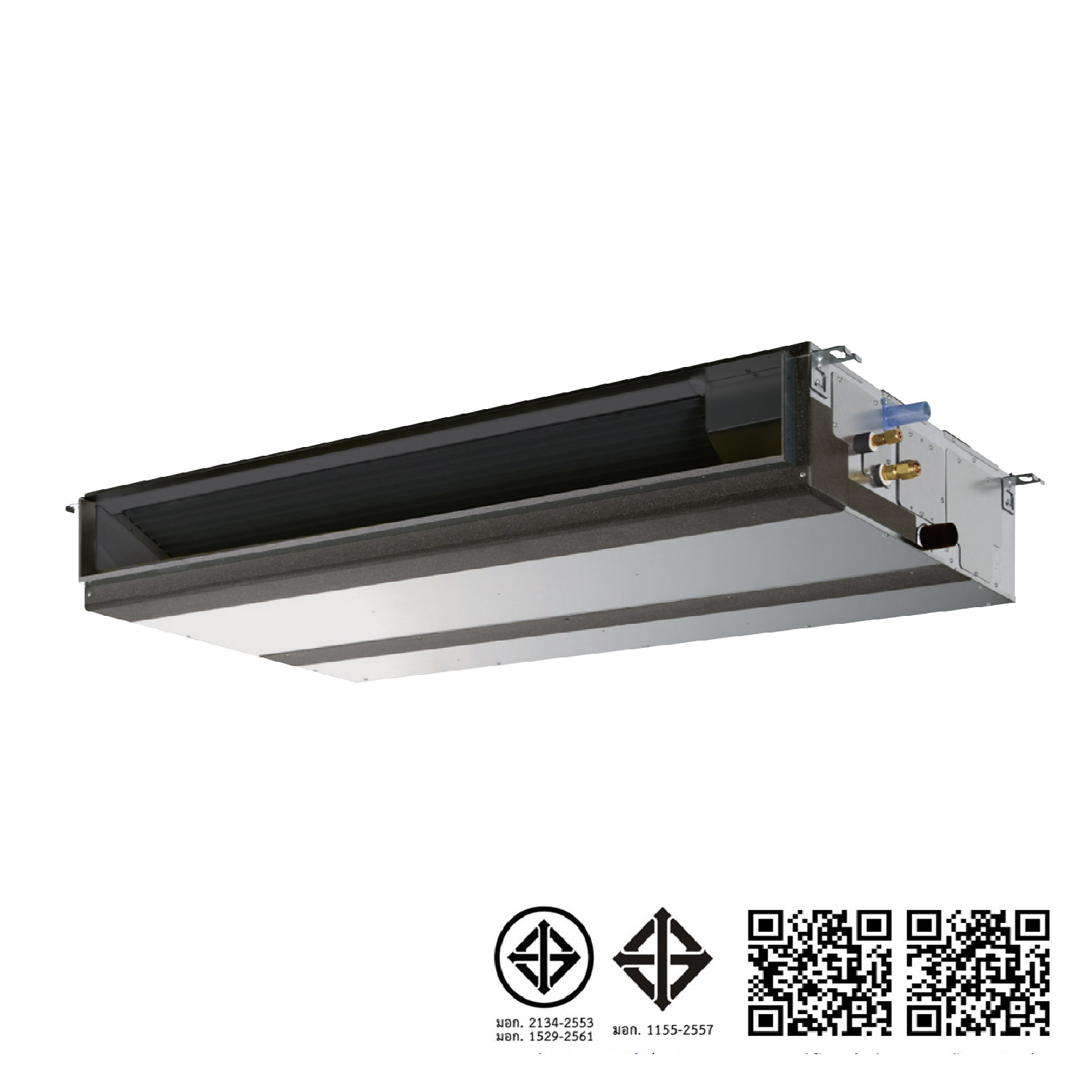

PEY-SM48JA(L)3



Ceilingconcealed , 48,000 BTU  , Inverter Series ,R32 refrigerant
สี : Black

Download Catalog

Download
2D CAD
print
- Compact body with a height of only 25 cm.

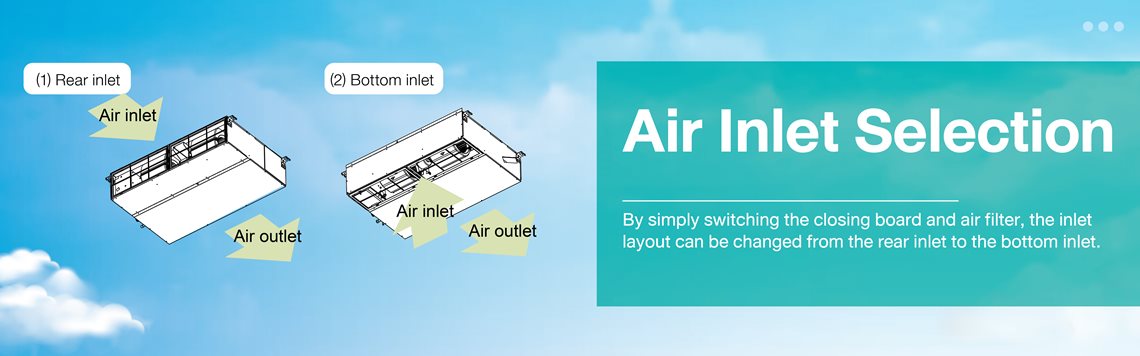

- Airflow can be adjusted from both the rear compartment and the bottom compartment.
- Work quietly By designing a fan and a vent which reduces friction.

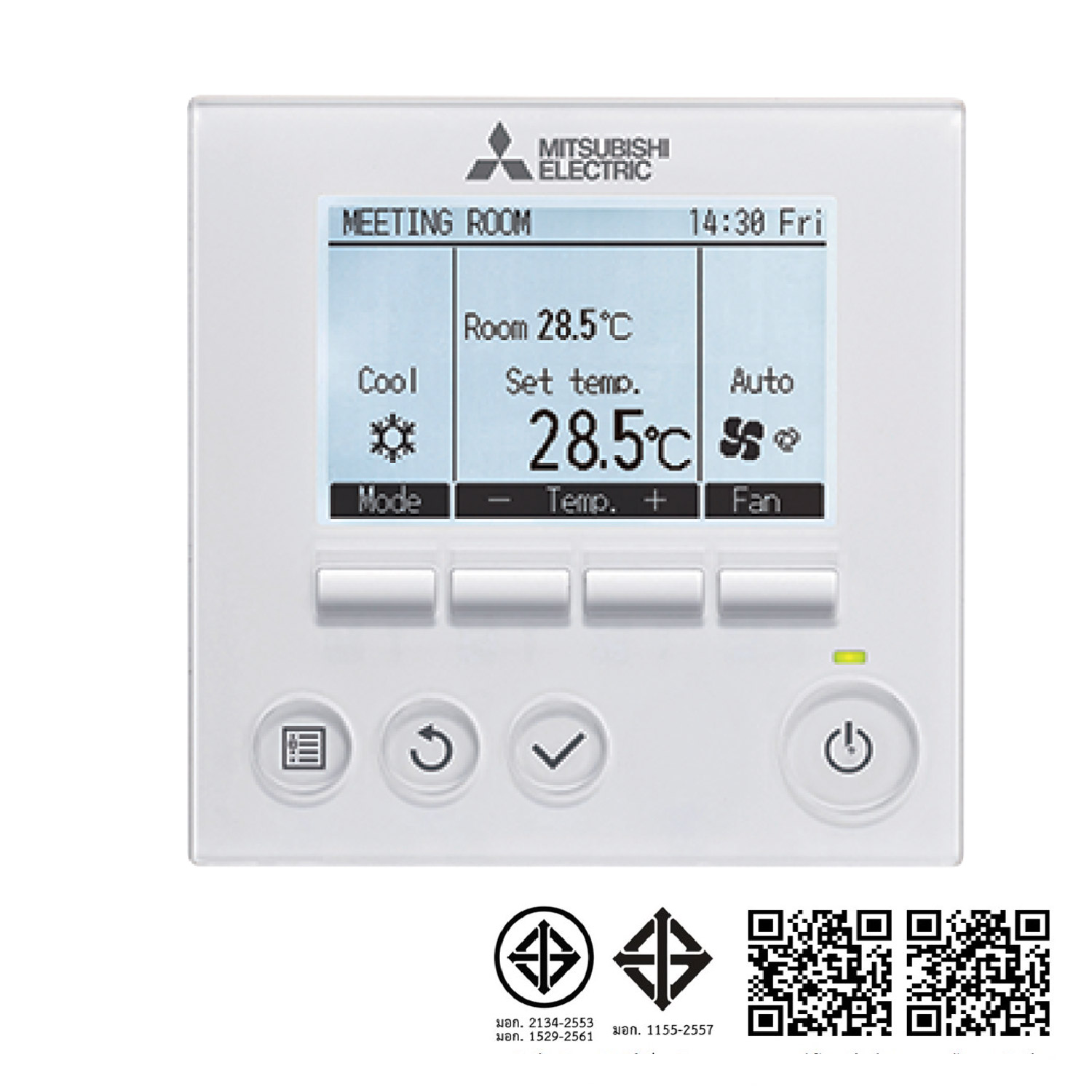

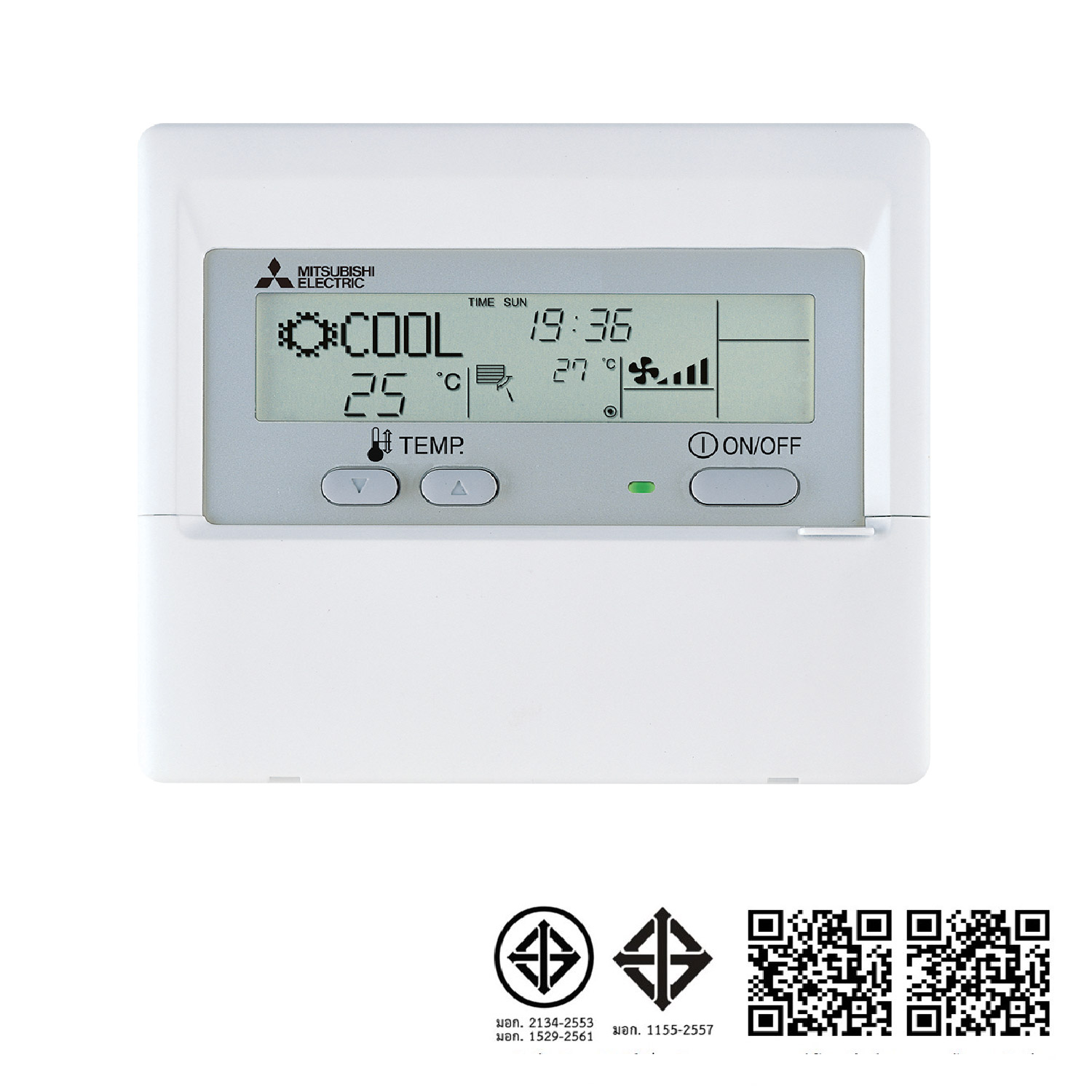

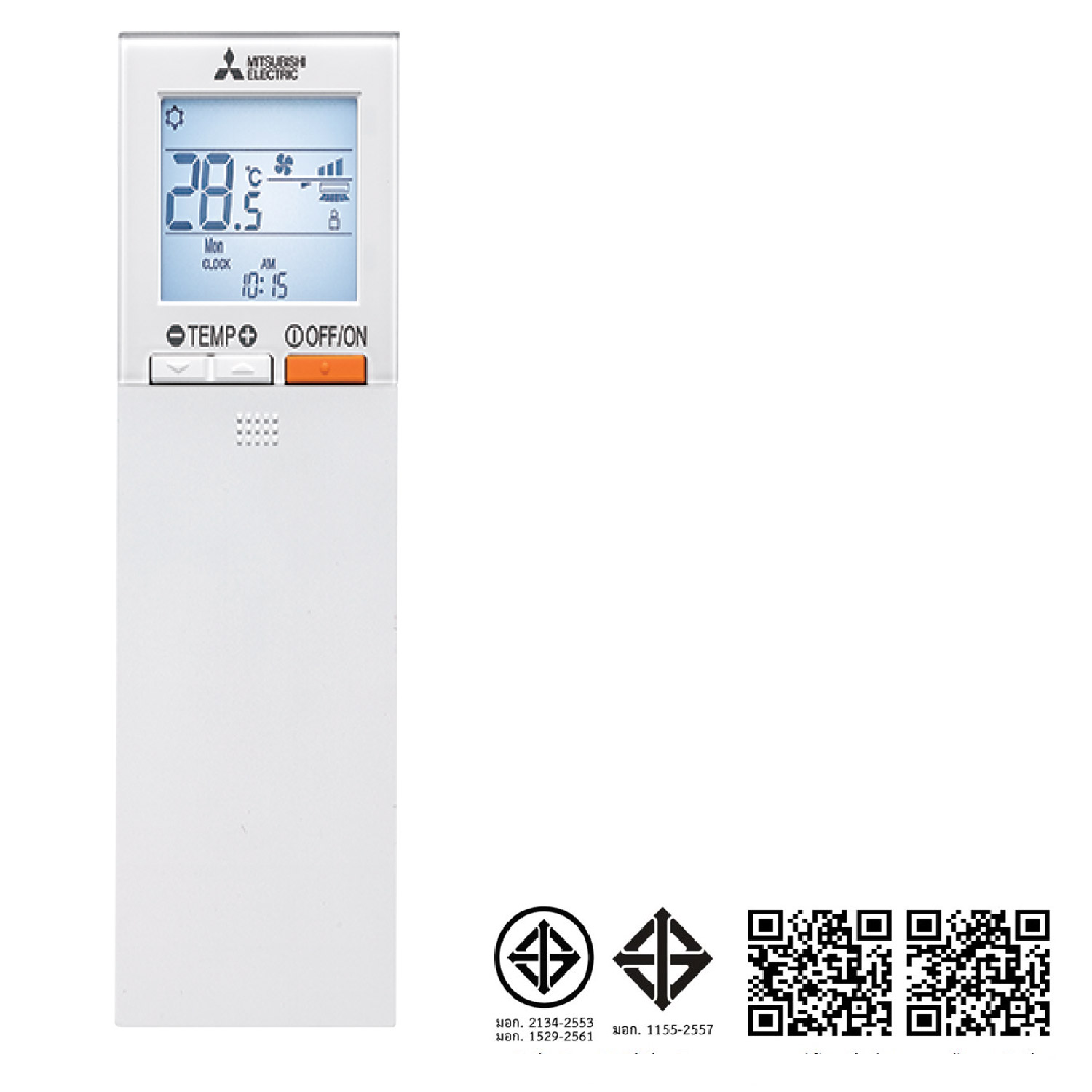

- Controlled by wireless or wired remote control.
- Can pipe solution Up to 30 - 50 meters.
- Adjustable external resistance up to 5 levels.
- Use R32, which is not toxic to the environment.
- INVERTER SYSTEM
MODEL
PEY-SM48JA(L)3
Cooling capacity (BTU/h)
48,000
SEER (Btu/h/W)
16.10
EGAT level 5
1 STAR
Cooling : Capacity Rated (kW)
14.1 (7.0 - 14.1)
Heating : Capacity Rated (kW)
-
Power Supply
1ph, 220V, 50Hz
Microprocessor Control
Automatic Temperature Control
Timer Switch
Remote Control Switch
Wireless/Wired
Indoor Fan Speeds
3
Blow Fan Indoor
Blow Fan Outdoor
Dimensions Indoor (H x W x D)
250 x 1,400 x 732
Dimensions Outdoor (H x W x D)
981 x 1,050 x 330
Weight Indoor
39
Weight Outdoor
63
Piping Size : Liquid (mm.in)
9.52 (3/8)
Piping Size : Gas (mm.in)
15.88 (5/8)
Piping Size : Max.Length / Max.Height (m)
50/30
Refrigerant
R32
Warranty
1 Years IN/OUT door heat exchanger , 5 Years Compressor , 1 Year General Part.
