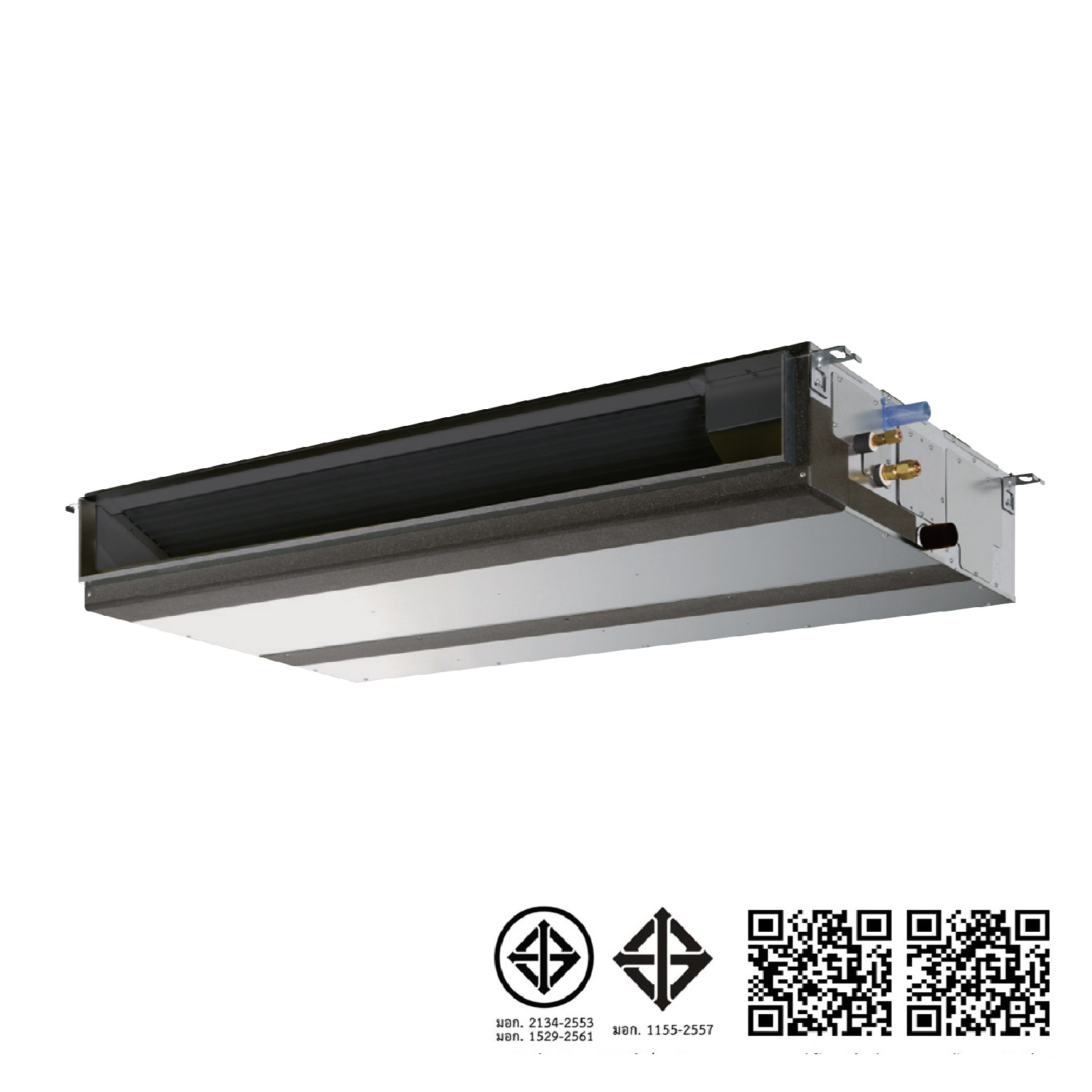

PEY SERIES (PEY-SM13JA(L)2)
PEY SERIES
PEY-SM13JA(L)2
Ceilingconcealed , 13,000 BTU  , Inverter Series ,R32 refrigerant ,EGAT5
สี : สีดำ

Download Catalog
print
- Compact body with a height of only 25 cm.

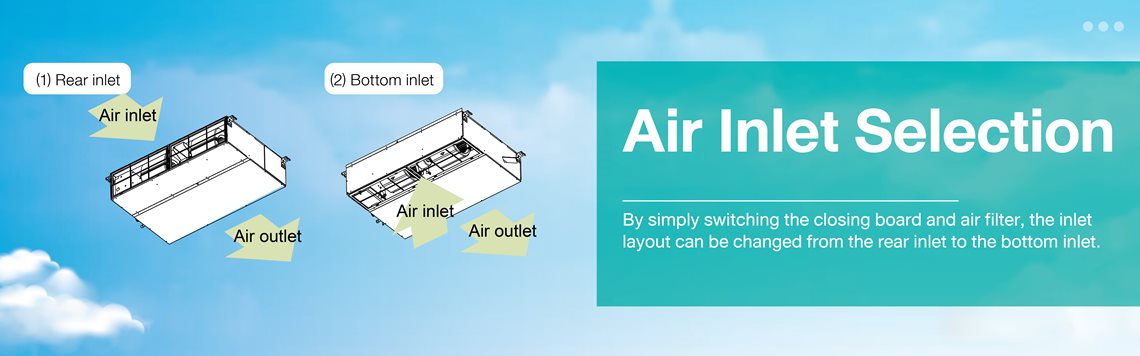

- Airflow can be adjusted from both the rear compartment and the bottom compartment.
- Work quietly By designing a fan and a vent which reduces friction.

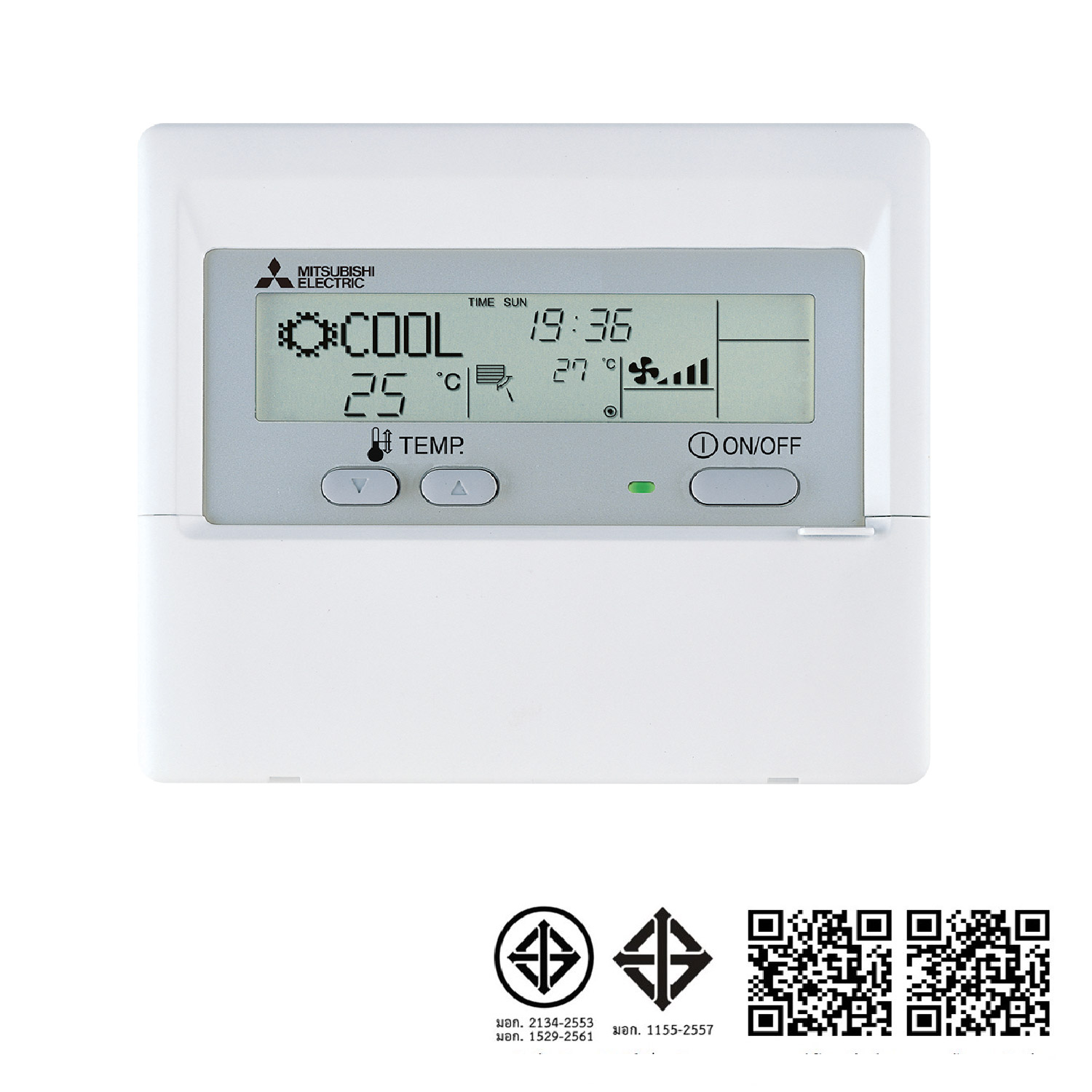

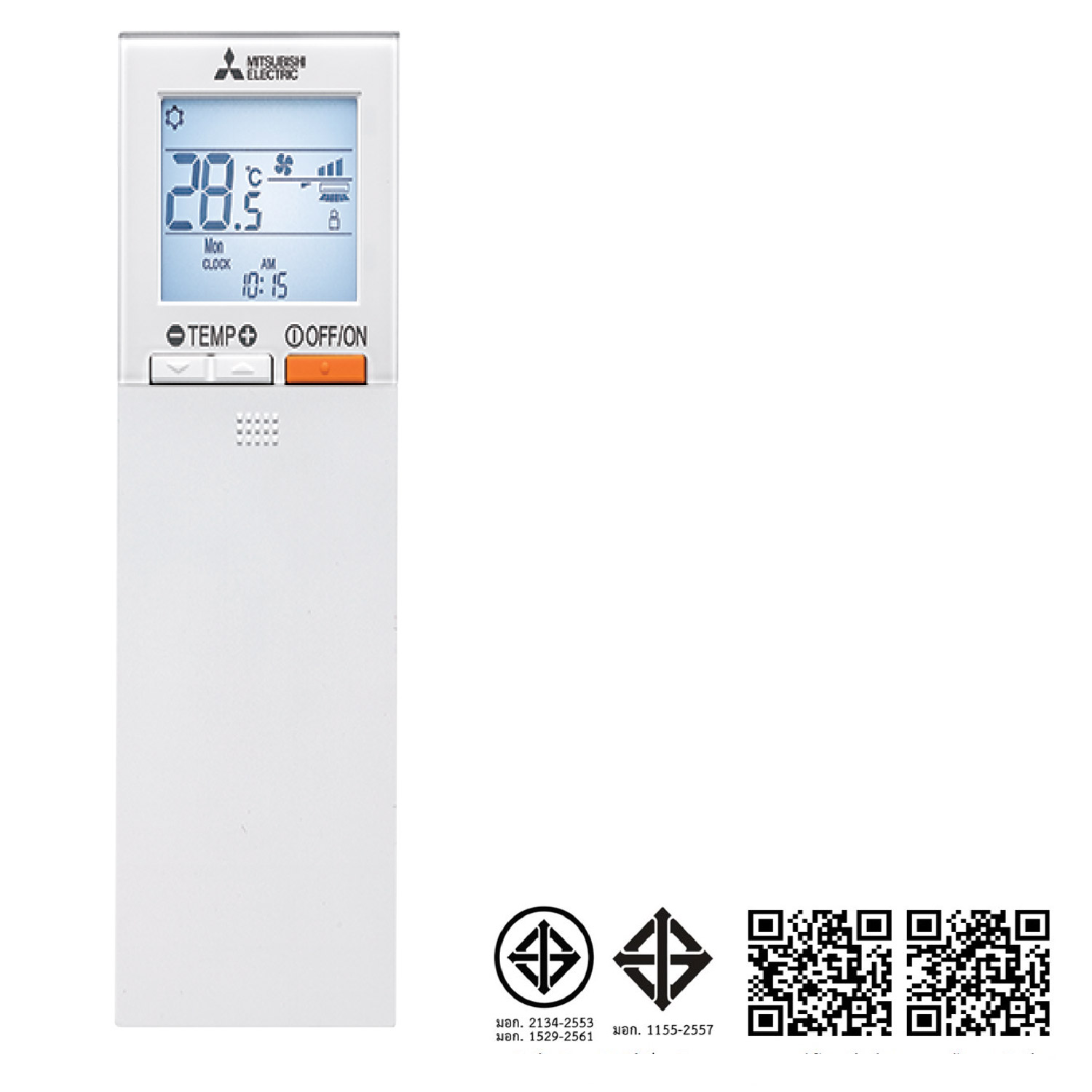

- Controlled by wireless or wired remote control.
- Can pipe solution Up to 30 - 50 meters.

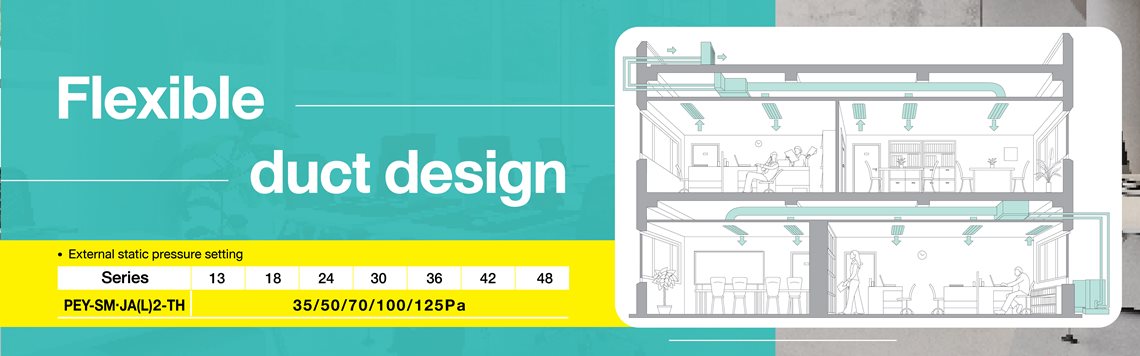

- Adjustable external resistance up to 5 levels.
- Certified for fiber-saving label 5
- Use R32, which is not toxic to the environment.
- INVERTER SYSTEM
MODEL
PEY-M13JA(L)
Cooling capacity (BTU/h)
13,989
SEER (Btu/h/W)
21.70
EGAT level 5
3 STAR
Cooling : Capacity Rated (kW)
4.1(2.8-4.1)
Heating : Capacity Rated (kW)
Power Supply
1ph, 220V, 50Hz
Microprocessor Control
Automatic Temperature Control
Timer Switch
Remote Control Switch
Wireless/Wired
Indoor Fan Speeds
3
Blow Fan Indoor
Blow Fan Outdoor
Dimensions Indoor (H x W x D)
250 x 900 x 732 (mm.)
Dimensions Outdoor (H x W x D)
714 x 800 x 285 (mm.)
Weight Indoor
27
Weight Outdoor
35
Piping Size : Liquid (mm.in)
6.35 (1/4)
Piping Size : Gas (mm.in)
12.70 (1/2)
Piping Size : Max.Length / Max.Height (m)
20/12
Refrigerant
R32
Warranty
1 Years IN/OUT door heat exchanger , 5 Years Compressor , 1 Year General Part.
