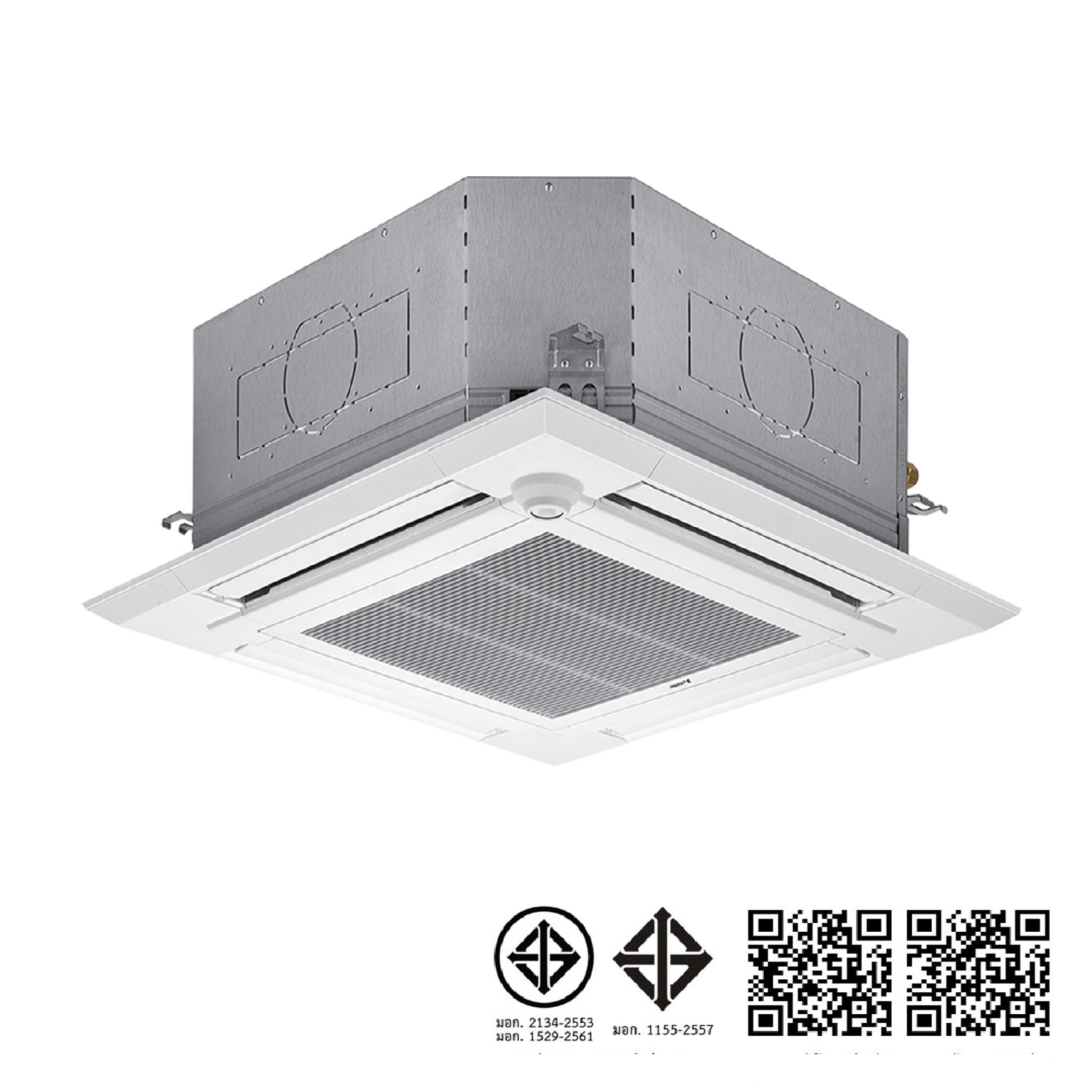

PL SERIES (PL-M13EAK)
PL SERIES
PL-M13EAK

สี : white

Download Catalog

Download
2D CAD
print
MODEL
PL-M13EAK
Cooling capacity (BTU/h)
13648
SEER (Btu/h/W)
13.41
EGAT level 5
0
Cooling : Capacity Rated (kW)
Heating : Capacity Rated (kW)
Power Supply
1 ph, 220V, 50Hz
Microprocessor Control
Automatic Temperature Control
Timer Switch

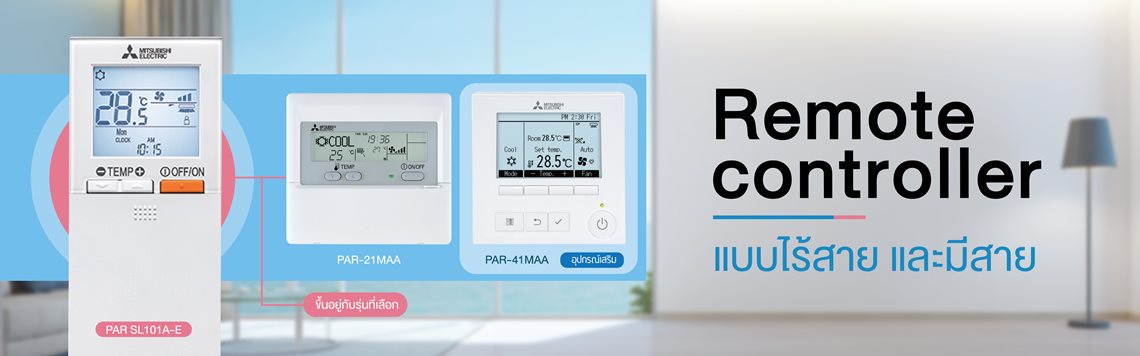

Remote Control Switch
Wireless/Wired
Indoor Fan Speeds
4+AUTO
Blow Fan Indoor
Blow Fan Outdoor
Dimensions Indoor (H x W x D)
258 x 840 x 840 (mm.)
Dimensions Outdoor (H x W x D)
525 x 718 x 255 (mm.)
Weight Indoor
19
Weight Outdoor
31.5
Piping Size : Liquid (mm.in)
6.35 (1/4)
Piping Size : Gas (mm.in)
12.70 (1/2)
Piping Size : Max.Length / Max.Height (m)
20/10
Refrigerant
R32
Warranty
3 Years IN/OUT door heat exchanger , 5 Years Compressor , 1 Year General Part.
