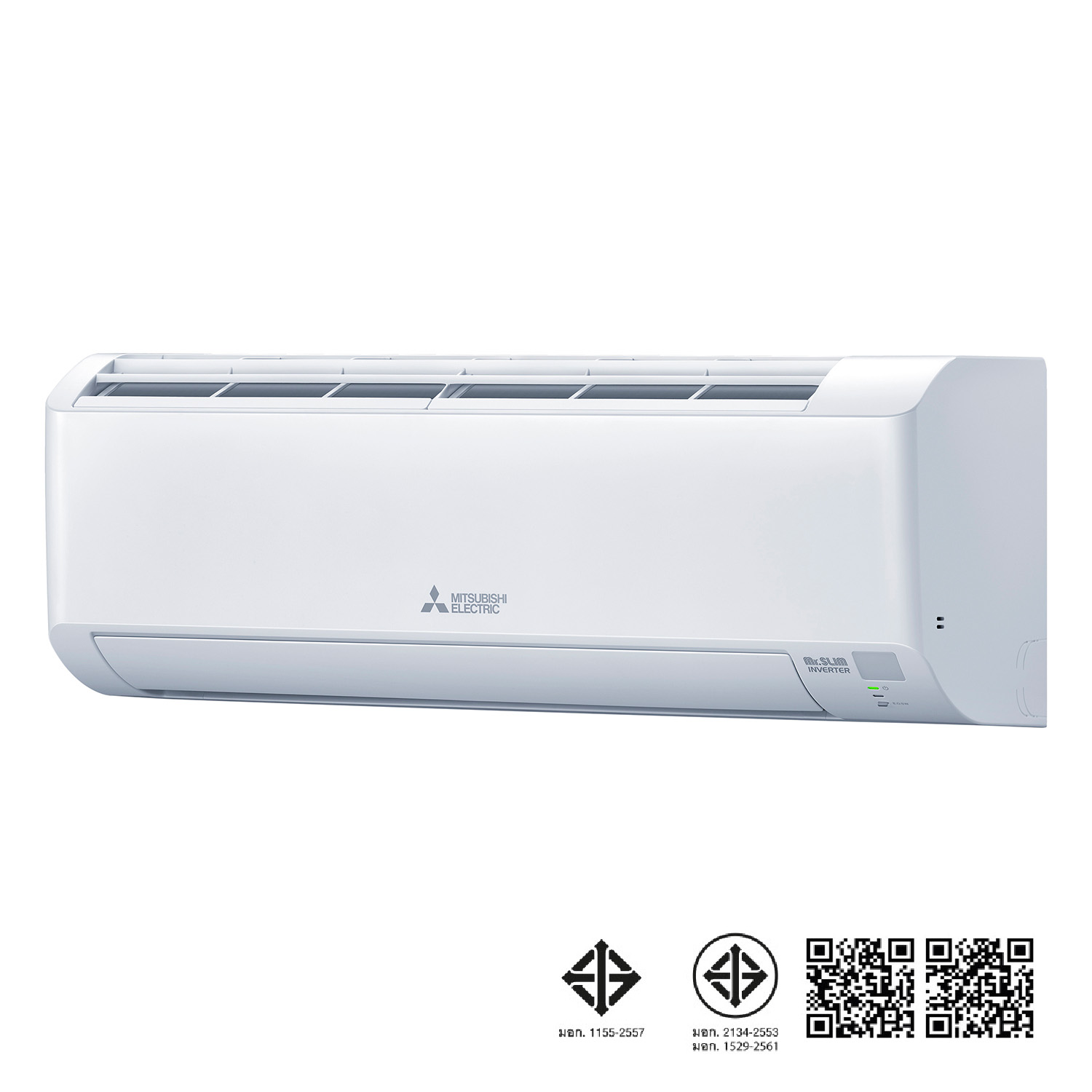

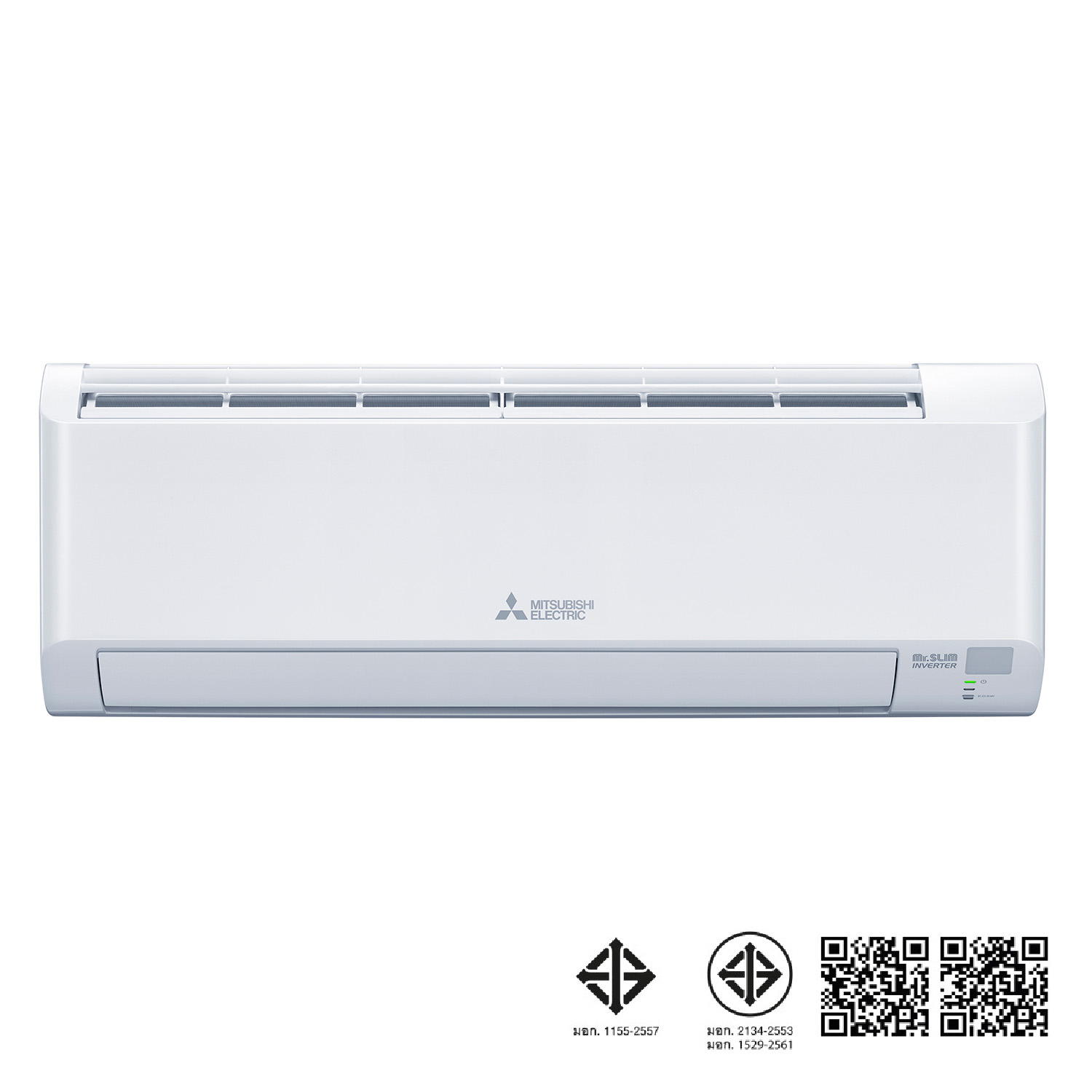

Happy Inverter (MSY-KT09VF)
Happy Inverter
MSY-KT09VF
Air conditioner inverter system.Happy with the cold and Comfortable in quality.
สี : สีขาว
print

- Inverter Provides maximum energy saving efficiency by reducing compressor cycles to achieve cool temperatures.
- Dual Barrier Coating
is the innovation of Mitsubishi Electric product. Which are coated on the inside with air conditioning parts. To reduce the capture of dust and oil mist and smoke cigarettes problems.

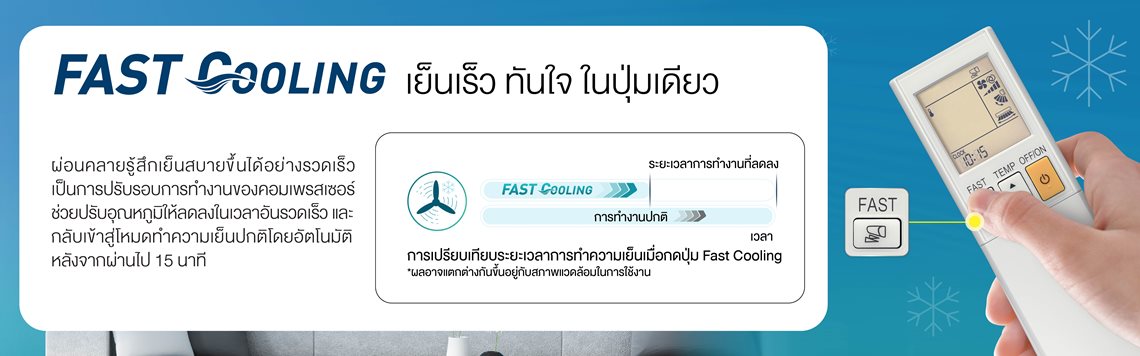

- Fast Cooling Compare to Powerful Mode, new fast cooling mode can boost up compressor to the max frequency in quickest available time.

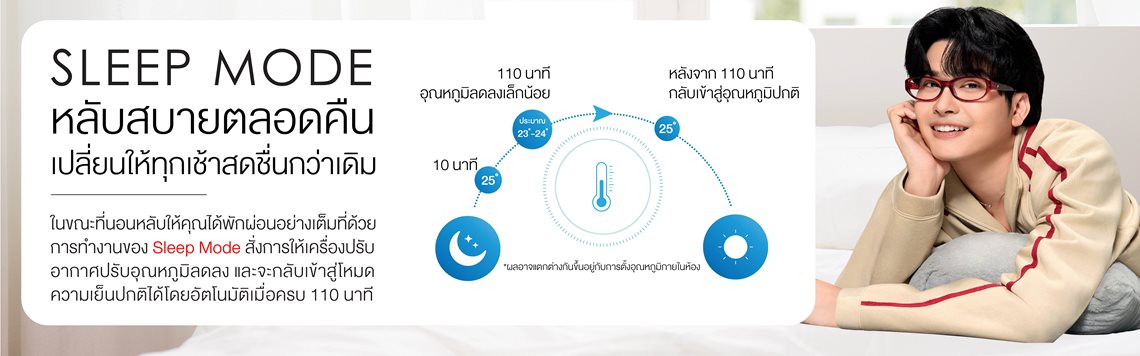

- Sleep Mode Reduce temperature slightly to support body to release heat while entering sleeping process.

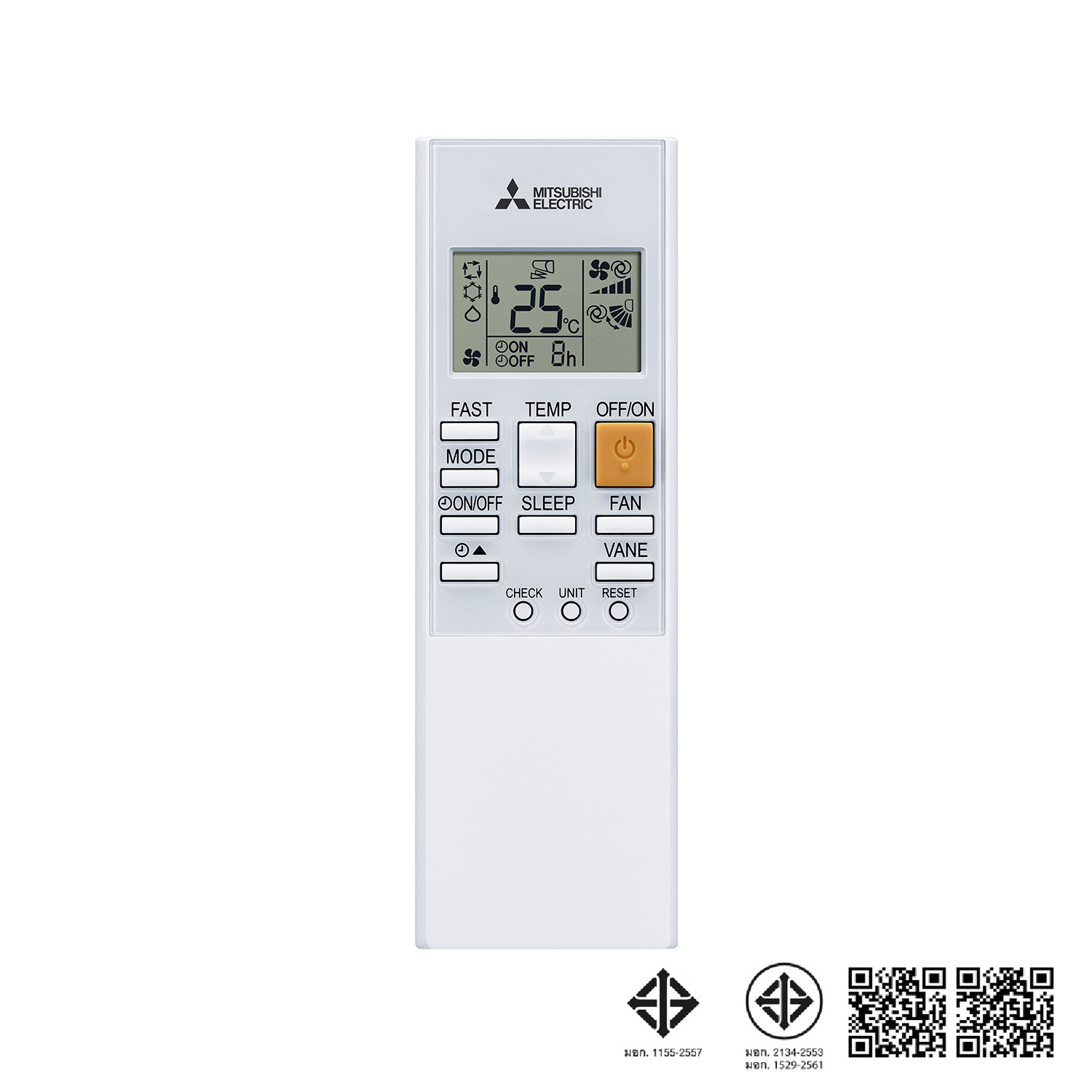

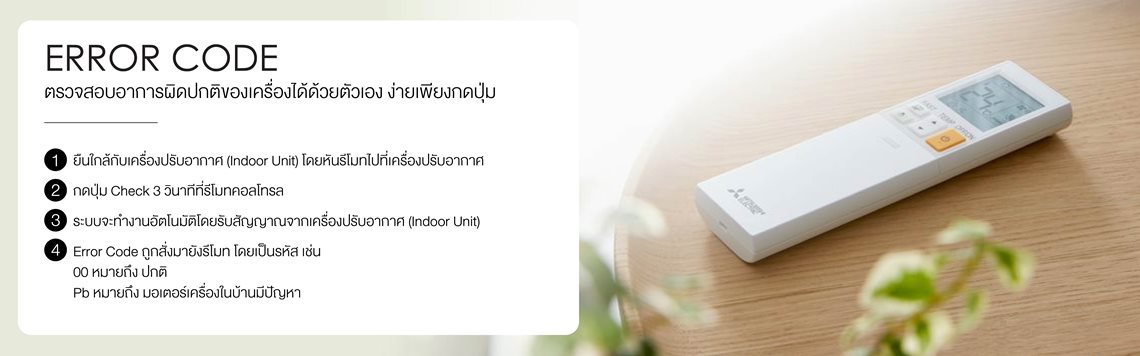

- Error Code when the air conditioner has a problem. Can check through on the remote control.

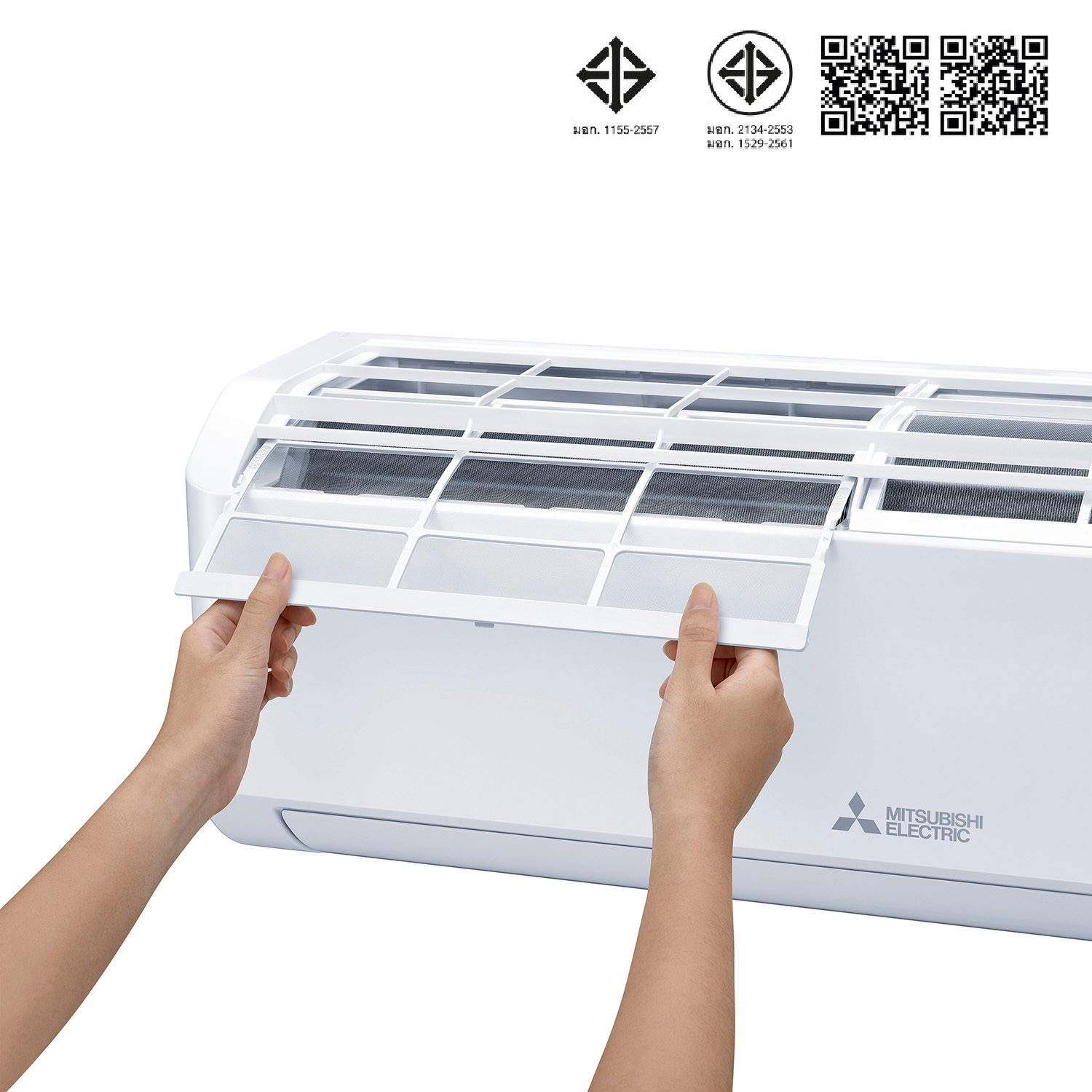

- Nano Platinum Filter Air filter that blends small platinum nanoparticles. Help to inhibit the growth of bacteria, fungus and odor.
-
Quiet Mode  operation only 19 decibels.
- 24 Hour ON/OFF Timer Scheduled 24-hour pre-programmed. 12 hours in advance.
- Refrigerant R32 is designed to be environmentally friendly the Reduce greenhouse effect. So not to destroy the atmosphere.
- Warranty card 5 years for Compressor. 3 year for Fan coil and Condensing and 1 year for spare parts.









MODEL
MSY-KT09VF
Cooling capacity (BTU/h)
9,212
SEER (Btu/h/W)
17.47
EGAT level 5
Cooling : Capacity Rated (kW)
2.7 (0.8 - 2.7)
Heating : Capacity Rated (kW)
Power Supply
220 V / Single phase / 50 Hz
Microprocessor Control
Automatic Temperature Control
Timer Switch
12 Hr. ON/OFF program timer
Remote Control Switch
Wireless
Indoor Fan Speeds
5+ AUTO
Blow Fan Indoor
Line flow fan
Blow Fan Outdoor
Propeller
Dimensions Indoor (H x W x D)
280 x 838 x 235
Dimensions Outdoor (H x W x D)
454 x 660 x 235
Weight Indoor
8
Weight Outdoor
18.5
Piping Size : Liquid (mm.in)
6.35 (1/4)
Piping Size : Gas (mm.in)
9.52 (3/8)
Piping Size : Max.Length / Max.Height (m)
20 / 12
Refrigerant
R32
