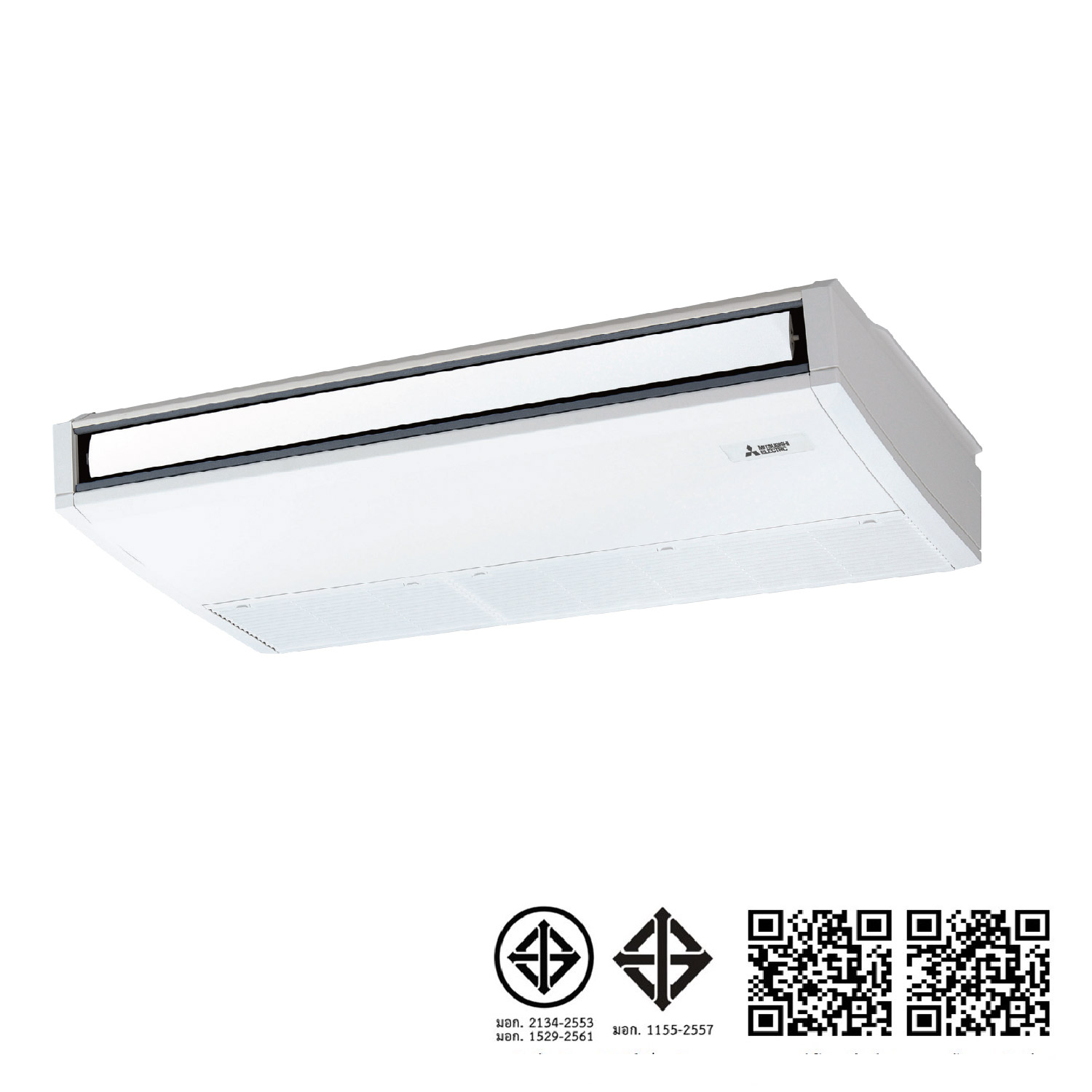

PC SERIES (PC-M48KAKL)
PC SERIES
PC-M48KAKL
(Three phase)
สี : สีขาว

Download Catalog
print
MODEL
PC-M48KAKL (3ph, 380V, 50Hz)
Cooling capacity (BTU/h)
48,109
SEER (Btu/h/W)
EGAT level 5
0
Cooling : Capacity Rated (kW)
14.10
Heating : Capacity Rated (kW)
Power Supply
3ph, 380V, 50Hz
Microprocessor Control
Automatic Temperature Control
Timer Switch
Remote Control Switch
Wireless/Wired(Option)
Indoor Fan Speeds
4
Blow Fan Indoor
Blow Fan Outdoor
Dimensions Indoor (H x W x D)
230 x 1,600 x 680 (mm.)
Dimensions Outdoor (H x W x D)
981 x 1050 x 330 (mm.)
Weight Indoor
40
Weight Outdoor
86
Piping Size : Liquid (mm.in)
9.52
Piping Size : Gas (mm.in)
15.88
Piping Size : Max.Length / Max.Height (m)
50/30
Refrigerant
R32
Warranty
3 Years IN/OUT door heat exchanger , 5 Years Compressor , 1 Year General Part.
