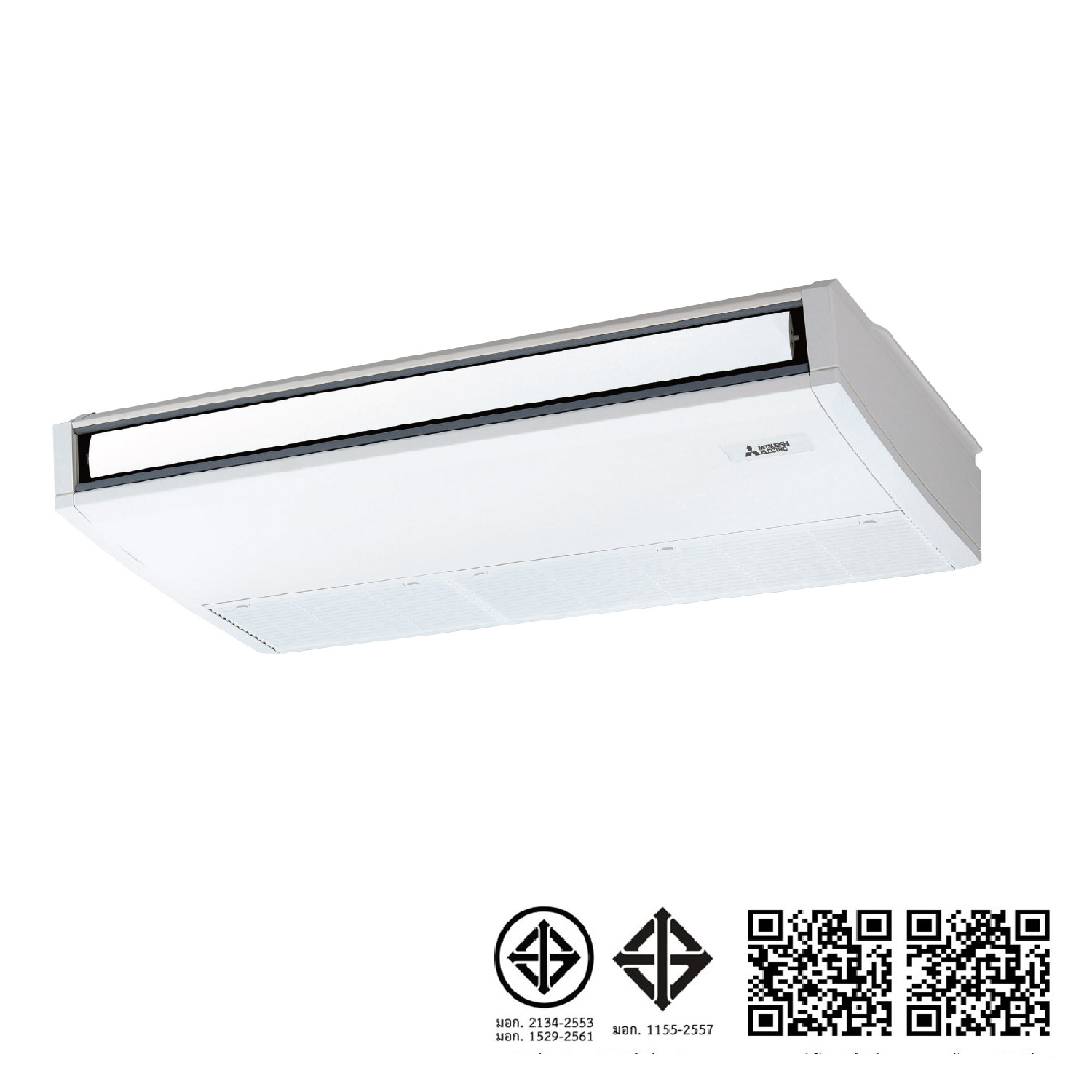

PCY SERIES (PCY-SM18KAL4)
PCY SERIES
PCY-SM18KAL4
Ceiling suspended, 18,000 BTU, Inverter Series, R32 refrigerant, EGAT 5
สี : White

Download Catalog

Download
2D CAD
print
MODEL
PCY-M18KAL4
Cooling capacity (BTU/h)
18,084
SEER (Btu/h/W)
25.30
EGAT level 5
5 STAR
Cooling : Capacity Rated (kW)
5.3(2.8-5.3)
Heating : Capacity Rated (kW)
-
Power Supply
1ph, 220V, 50Hz
Microprocessor Control
Automatic Temperature Control
Timer Switch

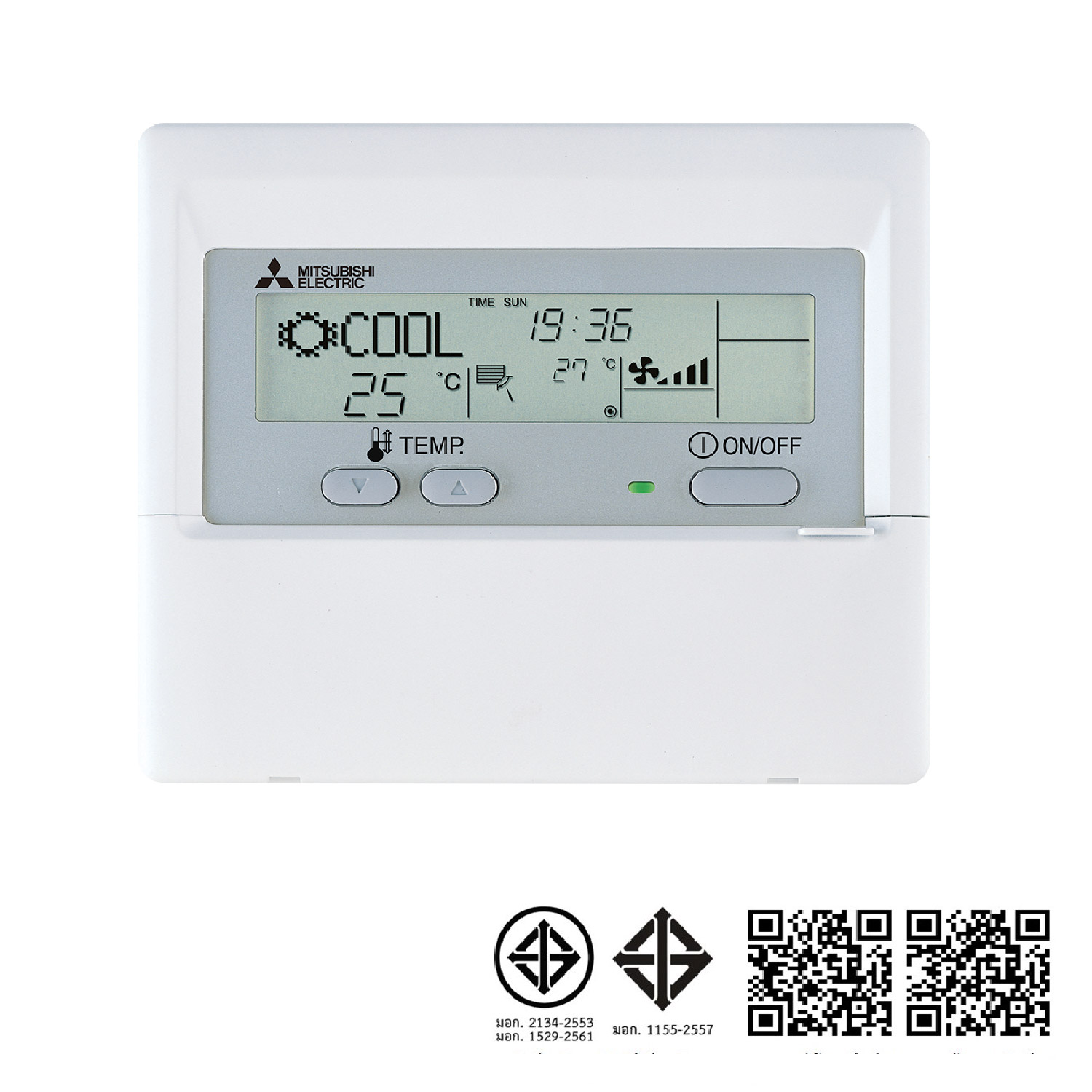

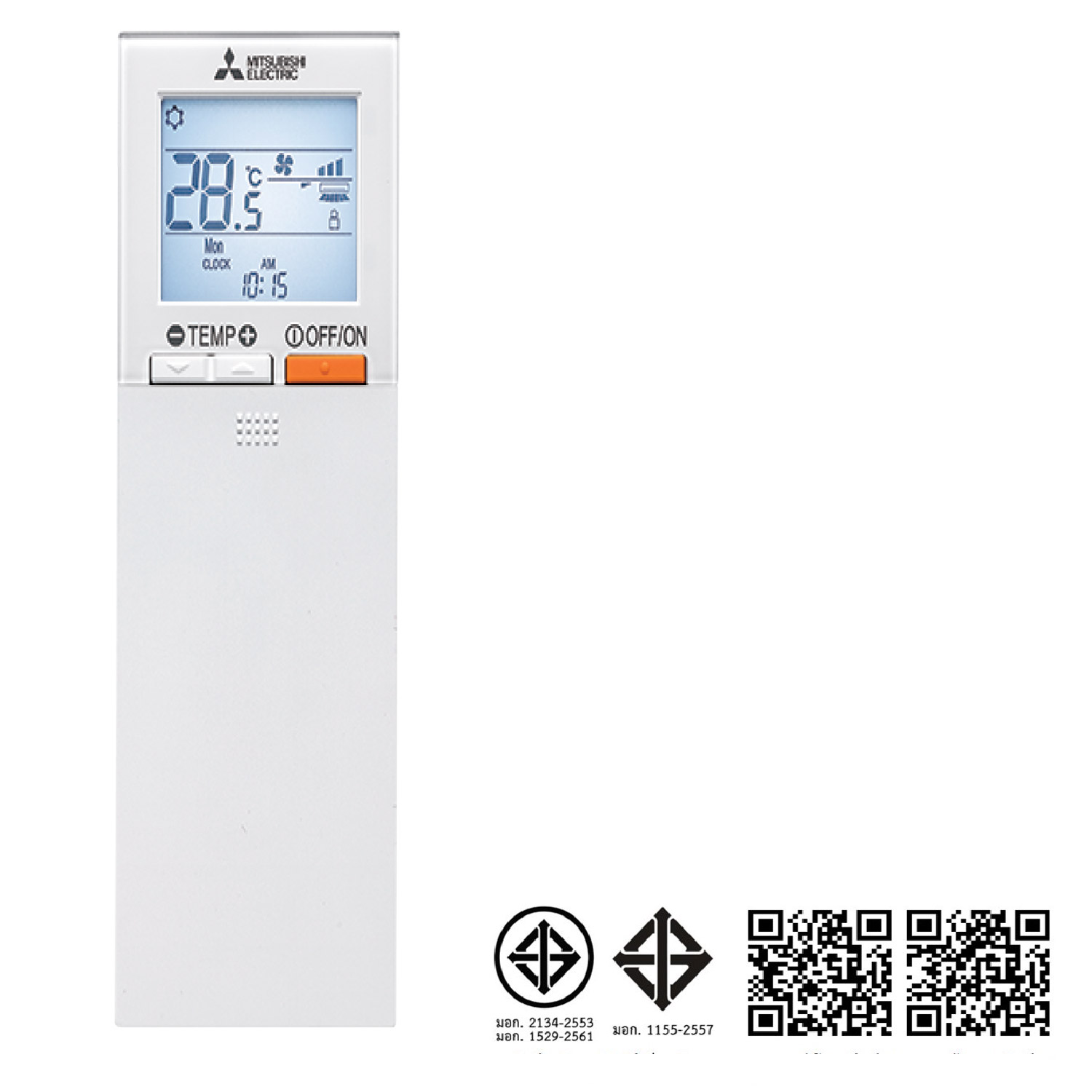

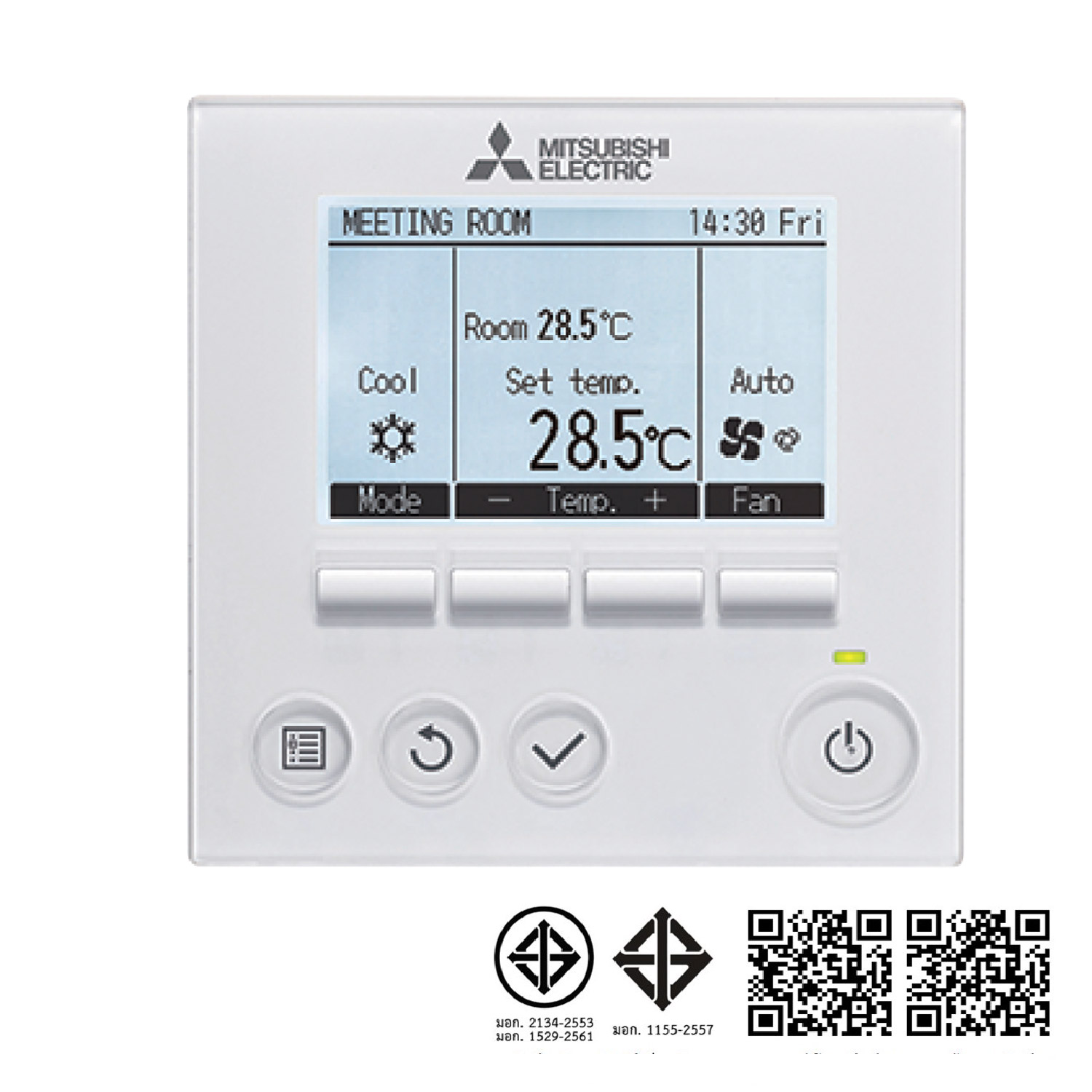

Remote Control Switch
Wireless/Wired(Option)
Indoor Fan Speeds
4 Step+1 AUTO
Blow Fan Indoor
Blow Fan Outdoor
Dimensions Indoor (H x W x D)
230 x 960 x 680 (mm.)
Dimensions Outdoor (H x W x D)
714 x 800 x 285 (mm.)
Weight Indoor
32
Weight Outdoor
44
Piping Size : Liquid (mm.in)
6.35 (1/4)
Piping Size : Gas (mm.in)
12.70 (1/2)
Piping Size : Max.Length / Max.Height (m)
20/12
Refrigerant
R32
Warranty
3 Years IN/OUT door heat exchanger , 5 Years Compressor , 1 Year General Part.
