PCY SERIES (PCY-M13KAL2)
PCY SERIES
PCY-M13KAL2
Ceiling suspended , 13,000 BTU ,  Inverter Series ,R32 refrigerant , EGAT5 (3 Star )
สี : PURE white

Download Catalog
print

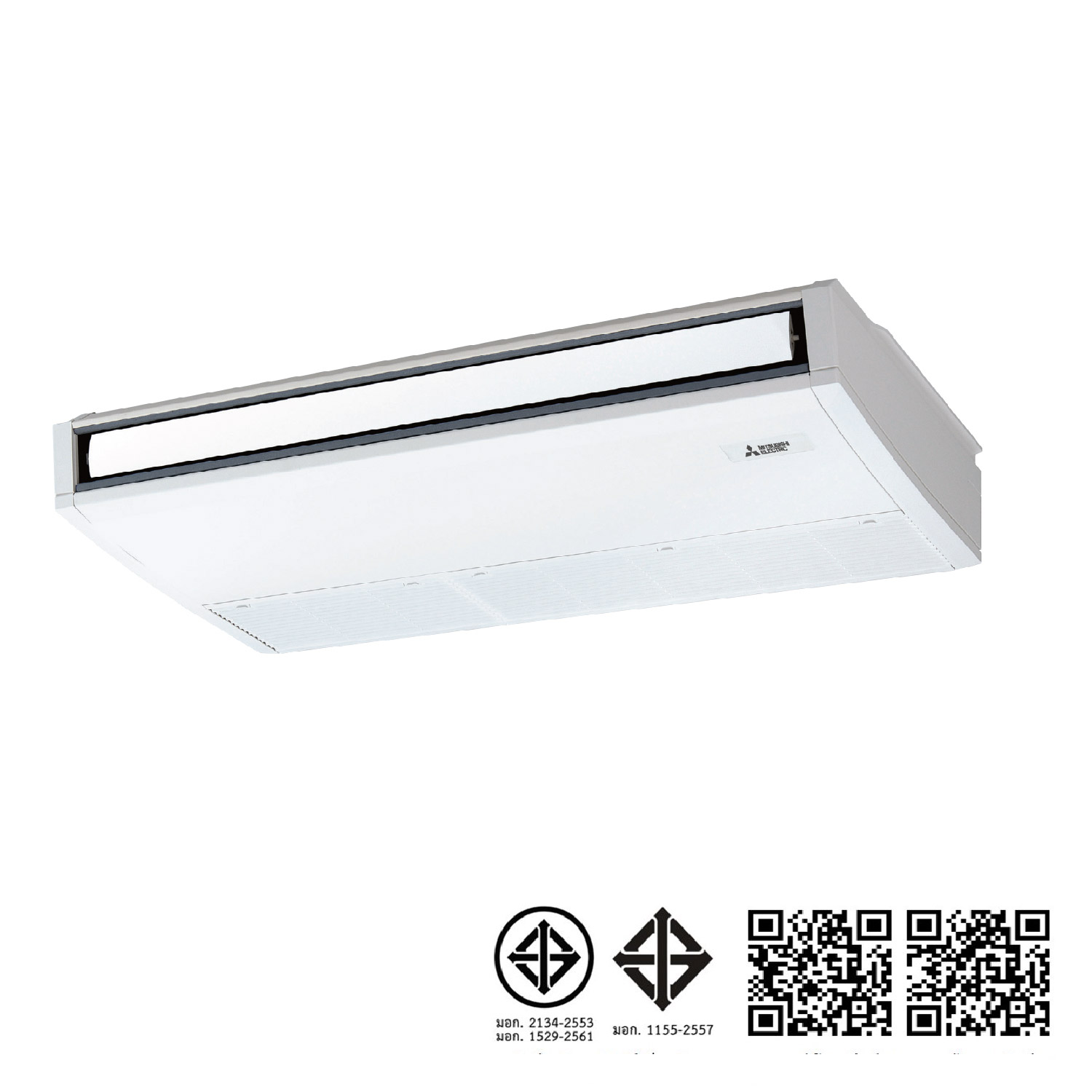

- A stylish square-like design is adopted for the indoor units of all models. As a result, the units blend in better with the ceiling.
- Quiet opreation

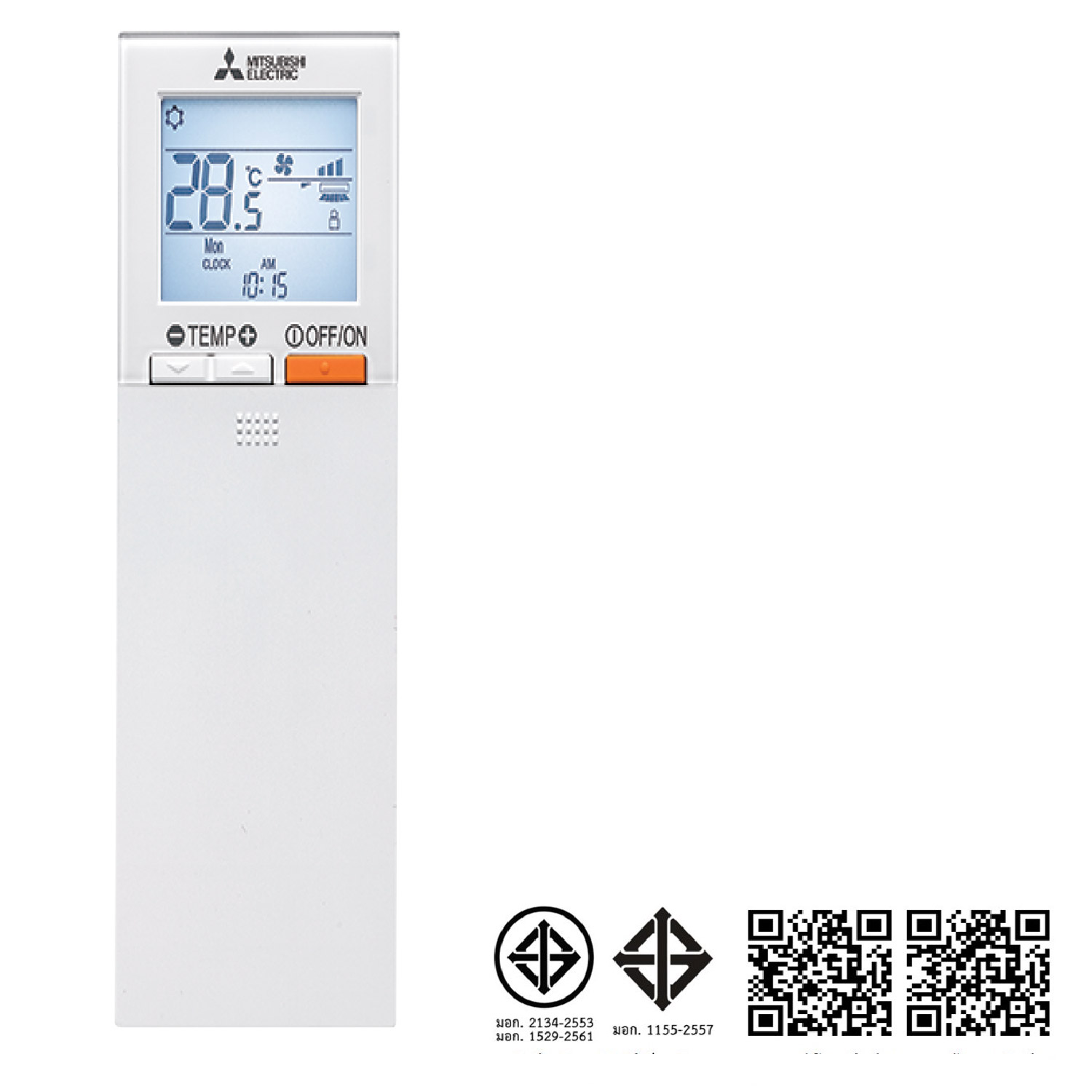

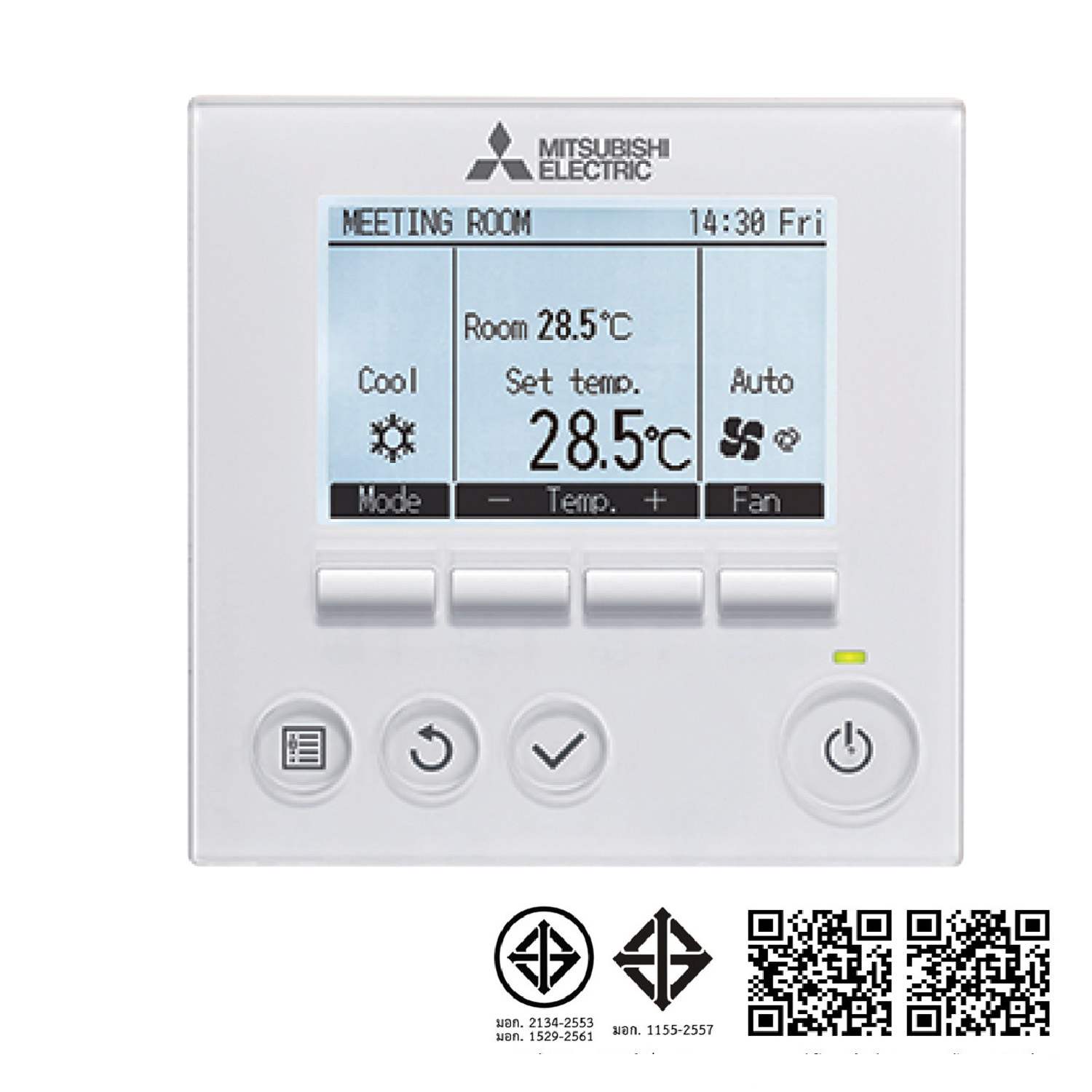

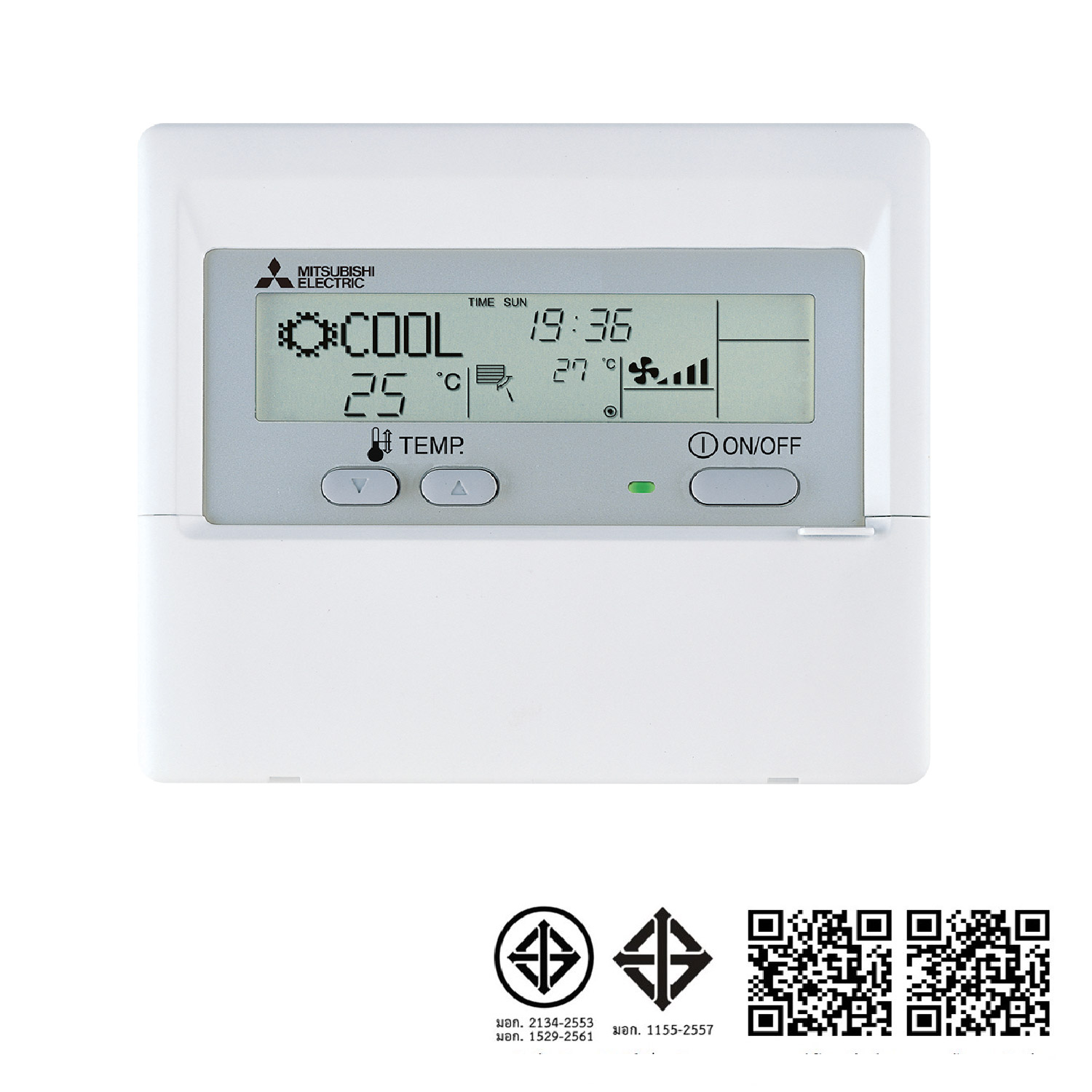

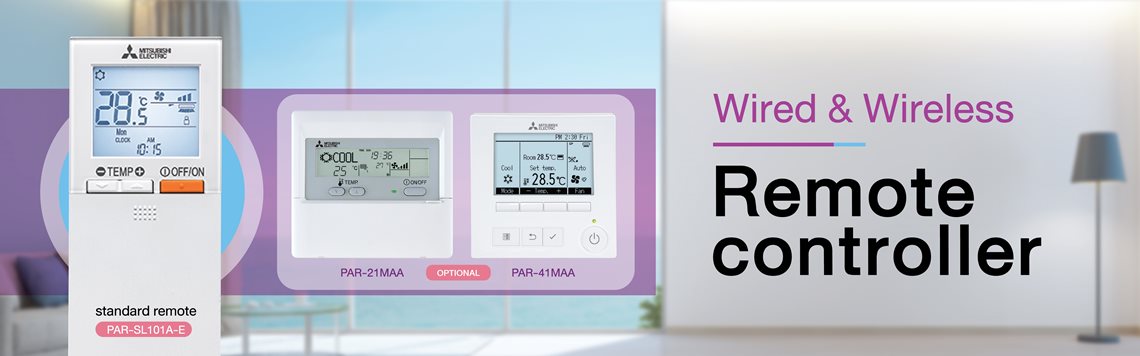

-  Wireless and Wired remote controller (Option)
- The air outlet fin swings from side to side so that the airflow reaches every part of the room.
- 50 metre refrigerant pipe.
- Centralised controler
- EGAT5 (3 Star )
- R32 Refrigerant
- Inverter series
MODEL
PCY-SM13KAL2
Cooling capacity (BTU/h)
13,989
SEER (Btu/h/W)
16.5
EGAT level 5
LABEL NO.5
Cooling : Capacity Rated (kW)
4.1(2.8-4.1)
Heating : Capacity Rated (kW)
-
Power Supply
1ph, 220V, 50Hz
Microprocessor Control
Automatic Temperature Control
Timer Switch
Remote Control Switch
Wireless/Wired(Option)
Indoor Fan Speeds
4 Step+1 AUTO
Blow Fan Indoor
Blow Fan Outdoor
Dimensions Indoor (H x W x D)
230 x 1,280 x 680 (mm.)
Dimensions Outdoor (H x W x D)
550 x 800 x 285 (mm.)
Weight Indoor
25
Weight Outdoor
31
Piping Size : Liquid (mm.in)
6.35 (1/4)
Piping Size : Gas (mm.in)
12.70 (1/2)
Piping Size : Max.Length / Max.Height (m)
20/12
Refrigerant
R32
Warranty
1 Years IN/OUT door heat exchanger , 5 Years Compressor , 1 Year General Part.
