PL SERIES (PL-M30EAK)
PL SERIES
PL-M30EAK


สี : white

Download Catalog
print
MODEL
PL-M30EAK
Cooling capacity (BTU/h)
30,026
SEER (Btu/h/W)
12.56
EGAT level 5
0
Cooling : Capacity Rated (kW)
8.80
Heating : Capacity Rated (kW)
Power Supply
1 ph, 220V, 50Hz
Microprocessor Control
Automatic Temperature Control
Timer Switch

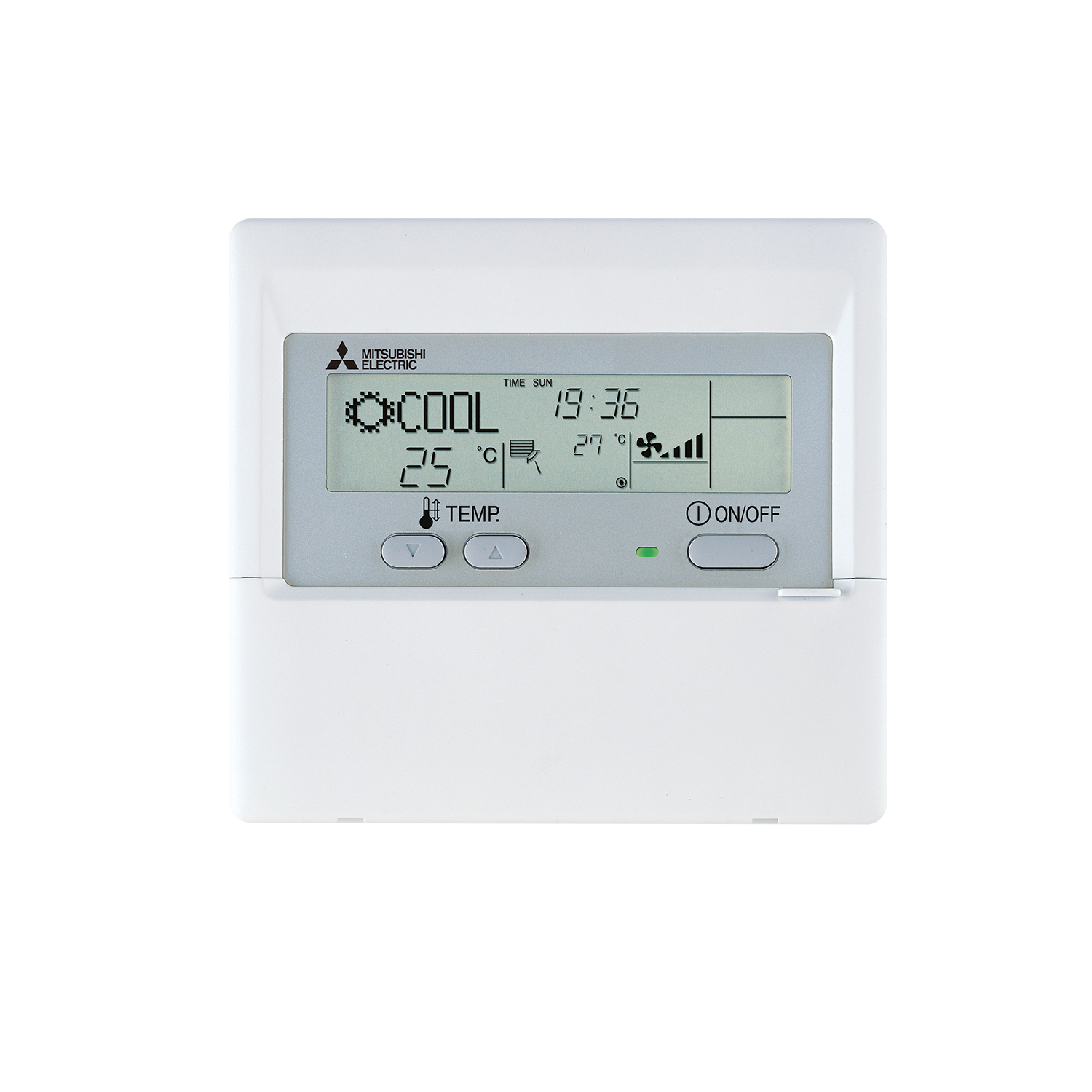

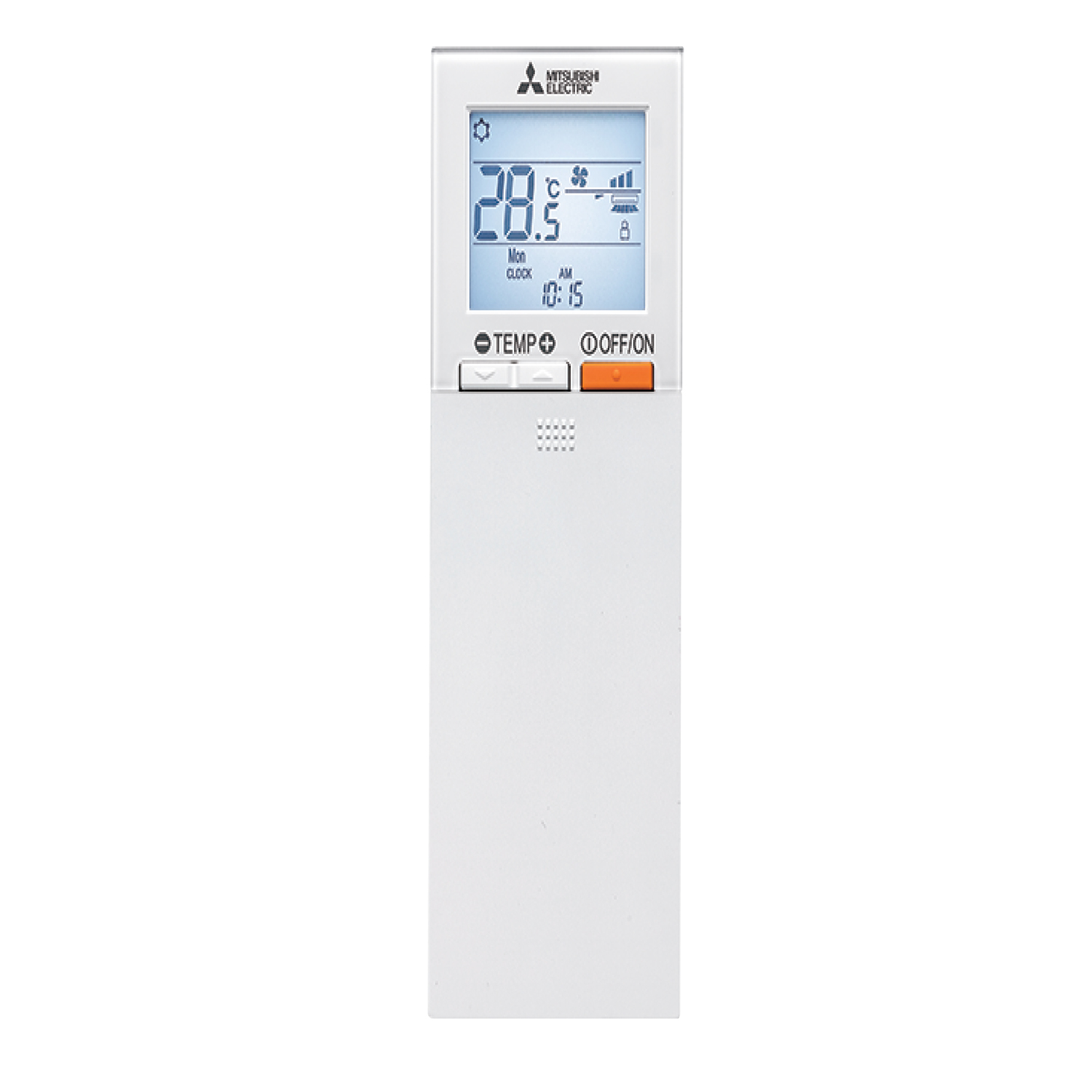

Remote Control Switch
Wireless/Wired
Indoor Fan Speeds
4+AUTO
Blow Fan Indoor
Blow Fan Outdoor
Dimensions Indoor (H x W x D)
298 x 840 x 840 (mm.)
Dimensions Outdoor (H x W x D)
880 x 840 x 330 (mm.)
Weight Indoor
24
Weight Outdoor
63
Piping Size : Liquid (mm.in)
9.52 (3/8)
Piping Size : Gas (mm.in)
15.88 (5/8)
Piping Size : Max.Length / Max.Height (m)
50/30
Refrigerant
R32
Warranty
3 Years IN/OUT door heat exchanger , 5 Years Compressor , 1 Year General Part.
